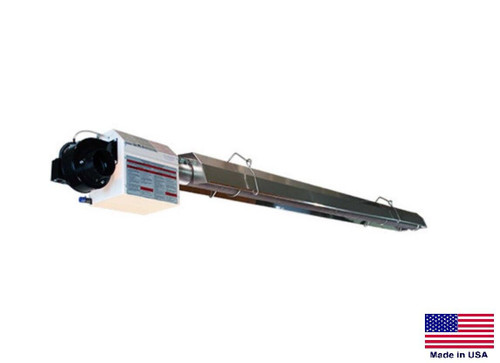

STRAIGHT TUBE HEATER Commercial - Infrared - LP Propane - 50 Ft - 175,000 BTU

(No reviews yet) Write a Review
$4,786.14
SKU:
RVIRT9FB2245892

*WE OFFER FREE SHIPPING TO ANYWHERE IN THE CONTIGUOUS (LOWER 48) UNITED STATES.  ALL OTHER DESTINATIONS, PLEASE CONTACT US FOR A FREIGHT QUOTE*

________________________________________________________________________________________________________________

Model: VIRT9FB2245892

Condition: New

Description: Tube Heater - Propane Fired - Commercial/Industrial

Payment Options: We Accept all Major Credit Cards, Personal & Business Checks, Bank Wire Transfers and Financing Through PayPal Credit

Shipping: We Ship Worldwide via Air, Ocean and Common Carrier.  Contact us for a Freight Quote if Shipment is going Outside of the Lower 48 United States

Discounting: We offer Multiple Item Purchase Discounts - Please Inquire

______________________________________________________________________________________________________



We Offer a Full Line of Straight and U-Tube Heaters - Please Visit or Store by Clicking "Visit Store" Link Above



THIS SERIES OF COMMERCIAL TUBE HEATERS IS AVAILABLE WITH THE FOLLOWING OPTIONAL CONFIGURATIONS:

Configurations: Straight Tube and U-Tube

Fuels: Natural Gas (NG) and Liquid Propane (LP)

BTU Ranges: 40,000 BTU through 200,000 BTU

Tube Lengths: 10 Ft through 80 Ft



Questions? Click the "Contact Seller" Link Above or Find us on the Web at Streamline Industrial a VirTau Company



Description & Specifications:

  • Industrial/Commercial LP Propane Fired Tube Heater
  • Our USA made infrared tube heaters provide efficient uniform radiant energy distribution.  Our tube heaters are recommended for complete building heating in most commercial and industrial applications including manufacturing and assembly facilities, aircraft hangars, large warehouses, animal confinement, auto repair facilities, automobile dealerships, patios, brooders, pole barns, bump shops, car and truck wash bays, shipping and receiving docks, greenhouses, swimming areas and more
  • Features: Unitary power vented (also known as positive pressure or push through system), available in straight and u-tube configurations with lengths from 10 Ft to 80 Ft, powder coated aluminized steel burner, bright finish aluminum reflectors, tube and reflector hangers and intermediate supports, heat treated aluminized steel radiant tubes, joint sealer screws, tubular stainless steel flexible gas connector with manual gas valve, two reflector caps, made in the USA
  • Heater Type: Infrared - Straight Tube - Commercial/Industrial
  • Fuel Requirement: Propane (LP)
  • Tube Length: 50 Ft
  • Overall Heater Length: 51.75 Ft
  • BTU Rating: 175,000
  • Current Rating: 110V, 60 Hz, 1 Phase, 1.4 Amp
  • Combustion Chamber: 4" OD heat treated aluminized steel
  • Venting: Direct or indirect venting - 75 Ft sidewall venting and 50 Ft outside air combustion capability
  • Ignition: Direct spark
  • Safety Controls: 100% gas shut off safety control
  • Clearance to Combustibles - Sides: 32"
  • Clearance to Combustibles - Ceiling: 6"
  • Clearance to Combustibles - Below: 72"
  • Minimum Mounting Height: 16 Ft
  • Gas Inlet Pressure Maximum Water Column Inches: 14
  • Gas Inlet Pressure Minimum Water Column Inches: 11
  • Mounting: Horizontal or angle mounting up to 45º
  • Gas Pipe Connection: 1/2" NPT Male
  • Flue Connection: 4" Round
  • Fresh Air Connection: 4" Round
  • Fuse Rating: In-line, 2 Amp 250V for 24V circuit
  • Includes 36" stainless steel flexible gas connector
  • Optional thermostats available - see Optional Items below
  • Certifications & Approvals: CSA Design Certified
  • Optional Item: Model VIR109165 - Line Pressure Regulator - Heavy duty, corrosion-resistant construction.  Equipped with vent-limiting device.  Does not require venting - Please inquire
  • Optional Item: Model VIR109168 - 4" Sidewall or Roof Venting Cap - Can be used in sidewall or through-the-roof venting systems - Please inquire
  • Optional Item: Model VIR109169 - 4" Combustion Air Cap - Used for combustion air or fresh air duct termination.  Aluminum construction.  Fits Type B or single wall flue pipe - Please inquire
  • Optional Item: Model VIR108118 - 120/240V - Programmable Digital Line Voltage Thermostat - Features separate programs for weekdays and weekends with up to 4 settings per day.  This is a hardwire thermostat - please inquire
  • Optional Item: Model VIR28795 - 4" Vertical Venting Kit - for direct venting of combustion by-products.  Includes three 24" pipe lengths, one 12" "L" pipe length, increaser, roof flashing, storm collar, roof cap, 90º elbow and draft hood connector.  Additional lengths of pipe available - Please inquire
  • Optional Item: Model VIR29794 - 4" Horizontal Venting Kit - for direct venting of combustion by-products.  Includes three 24" pipe lengths, one 12" straight pipe, one appliance adapter, one horiztonal termination cap, one wall thimble, two 45º elbows and draft hood connector.  Additional lengths of pipe available - Please inquire
  • Please allow 2 weeks for delivery - this heater is built to order
  • Overall Dimensions: 621" L x 13.5" W x 10.5" H
  • Weight: 152 Lbs
  • Warranty: 10 Years on Tubes, 3 Years and Remainder (Includes Parts & Labor)
  • Made in the USA
