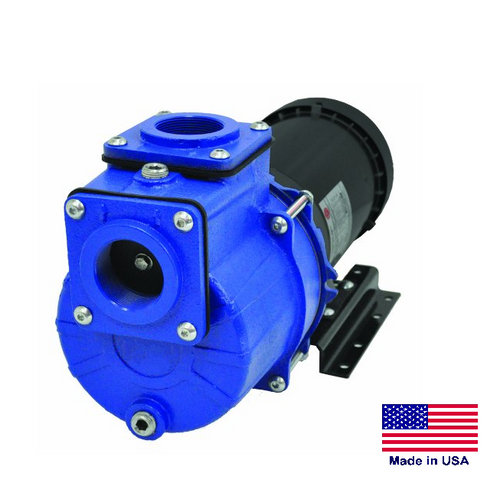

CENTRIFUGAL CHEMICAL PUMP - Cast Iron - 7800 GPH - 2" Ports - 208-230/460V
- SKU:
- WA2SP30C3P
________________________________________________________________________________________________________________
Model: WA2SP30C3P
Condition: New
Description: Centrifugal Pump - Cast Iron - Commercial/Industrial
Features: 7,800 GPH (130 GPM) - 3 Hp TEFC - 208-230/460V - 3 Phase - 8/4 Amps - 43.3 PSI - 56J Frame/Mounting Base - 2" NPT Threaded Suction Port / 2" NPT Threaded Discharge Port - Cast Iron Construction - Recommended for Chemical and Liquid Transfer - Self Cleaning, Clog Resistant Impeller - 1/2" Solids Handling Capacity - EDPM/ EPR Seals for Liquid Chemical Transfer (Verify chemical capability with liquids) - Built-In Check Valve, Self Priming to 20 Feet - 303 Stainless Steel Shaft From Engine - Easy Clean Out Design - Made in the USA
Payment Options: We Accept all Major Credit Cards, Personal & Business Checks and Bank Wire Transfers
Shipping: We Ship Worldwide via Air, Ocean and Common Carrier. Contact us for a Freight Quote
Discounts: We Offer Multiple Item Purchase Discounts - Please Inquire
______________________________________________________________________________________________________
SEE OUR FULL LINE OF CHEMICAL PUMPS AND ACCESSORIES IN OUR EBAY STORE BY CLICKING THE "VISIT STORE" LINK ABOVE UNDER SELLER INFORMATION
Questions? Click the "Contact Seller" Link Above (under Seller Information) or Find us on the Web at Streamline Industrial a VirTau Company
This Series of Industrial/Commercial Straight Centrifugal Pumps are Available in the Following Configurations:
Flows: 3,300 GPH (55 GPM) to 7,800 GPH (130 GPM)
PSI Ranges: 20.3 to 43.3
Motor Sizes: 1/2 Hp to 3 Hp
Voltage/Phase: 115-208/230V, 1 Phase, 208/230V, 1 Phase and 208-230/460V, 3 Phase
Suction/Discharge Ports: 1" Inlet/1" Outlet - 1.25" Inlet/1.25" Outlet - 1.5" Inlet/1.5" Outlet - 2" Inlet/ 2"Outlet
Head Ranges: 47 to 100 Ft
Available Options: Explosion Proof/Hazardous Location Configuration
Description & Specifications:
- Industrial/Commercial Heavy Duty Cast Iron Straight Centrifugal Pump
- Our extensive line of USA made industrial/commercial centrifugal and straight centrifugal pumps are designed for continuous operation and are recommended for use for chemical and liquid transfer, recirculation, booster service, dirty water and similar industrial/commercial applications.
- Features: heavy duty cast iron construction, EPDM/EPR mechanical seals, built in check valve for fast priming, NEMA 56J motors with stainless steel shafts, self priming to 20 feet, available in 50/60 Hz TEFC single or three phase motors, self cleaning, clog resistant impeller, handles liquids of specific gravities up to 1.3, easy clean-out design, dual volute design reduces radial load on motor, Not for use with petroleum based liquids
- Pump Type: Centrifugal - Industrial/Commercial
- Performance Curve: Reference Letter "F" for this Pump (see performance curve in photos in this listing)
- Frame: 56J
- Motor: 3 Hp
- Voltage: 208-230/460V
- Phase: 3
- Hertz: 60
- Motor Type: TEFC
- Amp Draw @ 208-230V: 8
- Amp Draw @ 230/460V: 4
- Suction Port: 2" - NPT Threaded
- Discharge Port: 2" - NPT Threaded
- Flow: 7,800 GPH (130 GPM)
- Pressure: 43.3 PSI
- Maximum Total Head: 100 Ft
- Maximum Working Pressure: 125 PSI
- Construction: Cast Iron
- Impeller: Clog Resistant, Self-Cleaning
- Seal: EPDM/EPR for Liquid Chemical Transfer with Specific Gravities Up to 1.3.
- Solids Handling Capacity: up to 1/2" Semi Solid
- Priming: Self Priming to 20 Ft - Built In Check Valve
- Maximum Temperature: 180ºF
- Maximum Flow: 130 GPM
- Not for use with petroleum based liquids (for petroleum based liquids we offer a full line of explosion proof/hazardous location pumps)
- Power Cord/Plug: N/A. This is a hard-wire pump. We recommend a licensed and insured electrician to run power to this pump
- Optional Items: we carry a full line of accessories including hoses, strainers, seal kits, wheel and dolly kits and more
- Note: This pump is built to order. Please allow 14 to 16 days for delivery
- Overall Dimensions: 21.3" L x 11" W x 11" H
- Ship Weight: 82 Lbs
- 1 Year Warranty - Includes Parts & Labor
- Made in the USA
*WE OFFER FREE SHIPPING TO ANYWHERE IN THE CONTIGUOUS (LOWER 48) UNITED STATES. ALL OTHER DESTINATIONS, PLEASE CONTACT US FOR A FREIGHT QUOTE*
