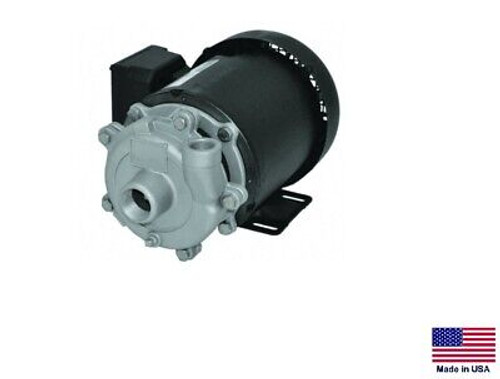

CENTRIFUGAL PUMP - Cast Iron - 1/3 Hp - 115/230V - 3/4" & 1/2" Ports - 1,980 GPH
- SKU:
- RVIR368A95
___________________________________________________________________________________________________________
Model: VIR368A95
Condition: New
Description: Centrifugal Pump - Industrial/Commercial
Features: 1,980 GPH (33 GPM) - 19.5 PSI - 1/3 Hp TEFC - 115/230V - 1 Phase - Single Stage - 3/4" NPT Suction Port / 1/2" NPT Discharge Port - Cast Iron Construction - Stainless Steel Impeller - Buna-N Seals (optional Viton® seal and gaskets available - see Optional Items below) - Made in the USA
Payment Options: We Accept all Major Credit Cards, Personal & Business Checks, Bank Wire Transfers
Shipping: Free Shipping within the Lower 48 United States. We also Ship Worldwide via Air, Ocean and Common Carrier. Contact us for a Freight Quote
Discounts: We Offer Multiple Item Purchase Discounts - Please Inquire
______________________________________________________________________________________________________
SEE OUR FULL LINE OF WATER, TRASH, SEWAGE AND CHEMICAL PUMPS AND ACCESSORIES IN OUR EBAY STORE BY CLICKING THE "VISIT STORE" LINK ABOVE UNDER SELLER INFORMATION
Questions? Click the "Contact Seller" Link Above (under Seller Information) or Find us on the Web at Streamline Industrial a VirTau Company
Construction: Cast Iron, Cast Bronze and Cast Stainless Steel
Flow Range: 1,980 GPH (33 GPM) to 5,520 GPH (92 GPM)
Voltages/Phase: 115/230V, 1 Phase and 230/460V, 3 Phase
Motor Horsepower Range: 1/3 Hp to 2 Hp
Motor Types: TEFC
Suction Port Range: 3/4" to 1-1/4" NPT Threaded
Discharge Port Range: 1/2" to 1" NPT Threaded
Available Optional Items Include: Viton® Seal and Gaskets
Description & Specifications:
- Industrial/Commercial Heavy Duty Water and Chemical Centrifugal Pump
- Our USA made heavy duty centrifugal pumps are designed for continuous operation with no duty cycle. Recommended circulation applications, chemical processing, dirty water and liquid transfer applications
- Features: Heavy duty cast iron construction, semi-open self-cleaning stainless steel impeller, stainless steel motor shaft and hardware, NEMA 56J TEFC motor, discharge rotates in 90º increments, front drain plug, available in cast iron, cast bronze and cast stainless steel, pull from rear design for easy service without disturbing any piping, solids handling up to 1/8" diameter, made in the USA
- Performance Chart: See Photo in the Listing - Reference Letter "A"
- Pump Type: Centrifugal - Industrial/Commercial
- Application: Circulation, Chemical Processing, Dirty Water and Liquid Transfer
- Construction: Cast Iron (also available in cast bronze and cast stainless steel)
- Voltage: 115/230V
- Phase: 1
- Horsepower: 1/3 Hp
- Motor Type: TEFC - 56J (NEMA base mounted motor)
- Full Load Amp Draw @ 115V: 7
- Full Load Amp Draw @ 230V: 4
- Stages: 1
- Pressure: 19.5 PSI
- Maximum Working Pressure: 75 PSI
- Solids Handling Capacity: 1/8"
- Flow: 1,980 GPH (33 GPM)
- Suction Port: 3/4" - NPT Threaded
- Discharge Port: 1/2" - NPT Threaded - Rotates 90º
- Impeller: Stainless Steel - Semi-Open - Self Cleaning
- Motor Shaft & Hardware: Stainless Steel
- Maximum Temperature: 180ºF
- Maximum Total Head: 45 Ft
- Seals: Buna-N (optional Viton® seals available - see Optional Items below)
- Optional Item: Model VIR368X301VS - Silicon Carbide/Viton® Seal and O-Ring Installed (please inquire)
- Optional Item: Model VIRA20190 - Mounting Base - for 56 Frames with Bases (please inquire)
- Overall Dimensions: 13" L x 8.3" W x 8.6" H
- Ship Weight: 34 Lbs
- 1 Year Warranty (Includes Parts & Labor)
- Made in the USA
