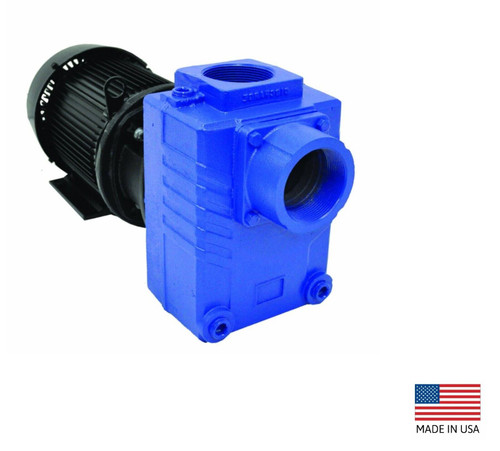

CENTRIFUGAL PUMP Cast Iron - 3" Ports - 7.5 Hp - 208-230/460V - 3 Ph 18,600 GPH

________________________________________________________________________________________________________________

Model: VIR287695

Condition: New

Description: Centrifugal Pump - Commercial/Industrial

Features: 22,800 GPH (380 GPM) - 3" NPT Threaded Suction & Discharge Ports - 7.5 Hp - 208-230/460V - 3 Phase - 110 Ft Head - 48 PSI - 3/8" Solids Handling Capability - Available in Explosion Proof/Hazardous Location Configuration - Made in the USA

Payment Options: We Accept all Major Credit Cards, Personal & Business Checks, Bank Wire Transfers

Shipping: Free Shipping Within the Lower 48 United States.  For Shipments Outside of the Lower 48 United States, Please Contact us for a Freight Quote.  We Ship Worldwide via Air, Ocean and Common Carrier

Discounts: We Offer Multiple Item Purchase Discounts - Please Inquire

______________________________________________________________________________________________________

This Series of Centrifugal Pumps are Available in the Following Configurations:

Construction: Cast Iron

Inlet/Outlet Diameters: 3"

Flow Rates: 250 GPM (15,000 GPH) through 380 GPM (22,800 GPH)

Motor Sizes: 3 Hp, 5 Hp and 7.5 Hp (TEFC)

Voltages: 230V, 1 Phase and 230/460V, 3 Phase

Available Options: Silicon Carbide Seal or Viton Mechanical Seal and Flapper Valve. Optional Mounting Base for 182/184/215 JM Frames.  This pump can also be built in an explosion proof/hazardous location configuration.

Description & Specifications:

• Commercial/Industrial Centrifugal Pump - Cast Iron
• Our USA made heavy duty centrifugal pumps are designed for commercial and industrial applications.  This line is highly recommended for high volume liquid transfer including dewatering, circulation, drainage and irrigation with a solids handling capability of 3/8" diameter
• Features: Cast iron construction with stainless steel impeller, self priming to 20 ft, self-cleaning, semi-open impeller, dual volute to reduce radial load on motor, centerline discharge to prevent vapor binding and provides convenient piping connections, built-in check valve for fast self-priming, fill and drain plugs for easy installation and servicing. Made in the USA
• Pump Type: Centrifugal - Commercial/Industrial
• Performance Curve: Reference Letter "C" for this Pump (see performance curve in photos in this listing)
• Suction Port: 3" NPT Threaded
• Discharge Port: 3" NPT Threaded
• Flow: 380 GPM (22,800 GPH)
• Pressure: 48 PSI
• Maximum Total Head: 110 Ft
• Motor: 7.5 Hp - TEFC
• Voltage: 208-230/460V
• Phase: 3
• Amp Draw @ 208-230V: 20
• Amp Draw @ 460V: 10
• Construction: Cast Iron
• Seal/Check Valve/O-Ring: Buna-N (optional seals available - see Optional Items below)
• Maximum Temperature: 180ºF
• Priming: Self-priming up to 20 Ft with Build-In Check Valve
• Impeller: Stainless Steel - Self-Cleaning, Semi-Open
• Solids Handling Capacity: up to 3/8" Diameter
• Volute: Dual - Reduces Radial Load on Motor
• Frame: 184JM
• Optional Item: Model VIR287X300V0 - Viton Seal, O-Ring and Flapper Valve - Factory Installed
• Optional Item: Model VIR287X300VS - Silicon Carbide/Viton Seal, O-Ring and Flapper Valve - Factory Installed
• Optional Item: Model VIRA20090/VIRA200K0 - Mounting Base for 182/184/215 JM Frames - Factory Installed
• Optional Item: Model VIR287SEXPHL - Explosion Proof/Hazardous Location Configuration
• Overall Dimensions: 26.6" L x 12" W x 11.8" H
• Ship Weight: 176 Lbs
• 1 Year Warranty (Includes Parts & Labor)
• Made in the USA
