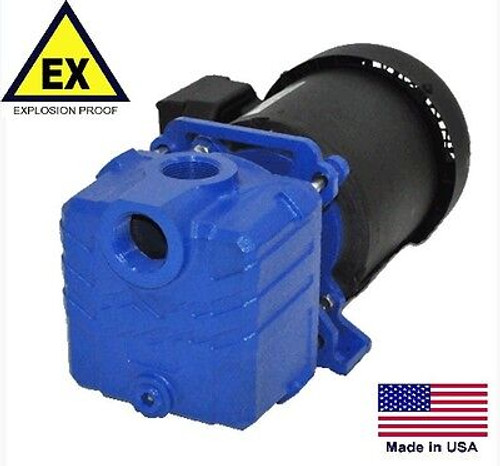

CENTRIFUGAL PUMP - Explosion Proof - 1/2 Hp - 115/230V - 1" Ports - 3,000 GPH

(No reviews yet) Write a Review
$2,009.90
SKU:
VIR285EX5
CENTRIFUGAL PUMP - Explosion Proof - 1/2 Hp - 115/230V - 1" Ports - 3,000 GPH
View Details

*WE OFFER FREE SHIPPING TO ANYWHERE IN THE CONTIGUOUS (LOWER 48) UNITED STATES*



********************

Model: VIR285EX5

Condition: New

Description: Centrifugal Pump - Explosion Proof/Hazardous Location - Commercial/Industrial

Payment Options: We Accept all Major Credit Cards, Personal & Business Checks, Bank Wire Transfers

Shipping: Free Shipping within the Lower 48 United States.  We also Ship Worldwide via Air, Ocean and Common Carrier.  Contact us for a Freight Quote

Discounts: We Offer Multiple Item Purchase Discounts - Please Inquire



********************



SEE OUR FULL LINE OF PUMPS AND ACCESSORIES BY CLICKING THE “VISIT SELLER’S OTHER ITEMS” LINK ABOVE UNDER SELLER INFORMATION



Questions?  Click the "Contact Seller" Link Above (under Seller Information) or Find us on the Web at Streamline Industrial a VirTau Company



This Series of Commercial Centrifugal Pumps are Available in the Following Configurations:

Flows: 3000 GPH (50 GPM) to 4980 GPH (83 GPM)

PSI Range: 23 to 31

Motor Sizes: 1/3 Hp to 1.5 Hp

Voltage/Phase: 115/230V, 1 Phase and 230/460V, 3 Phase

Suction/Discharge Ports: 1" to 1.25"



Description & Specifications:
  • Industrial/Commercial Heavy Duty Explosion Proof/Hazardous Location Centrifugal Pump
  • Our extensive line of USA made industrial/commercial centrifugal pumps are designed for continuous operation and are recommended for use in water circulation, boosting, washdown, liquid transfer, de-watering and similar applications
  • Features: heavy duty cast iron construction, dual volute design which reduces radial load on motor, centerline discharge, self-cleaning semi-open impeller, self priming to 20 Ft, ODP & TEFC commercial duty motors
  • Pump Type: Centrifugal - Explosion Proof/Hazardous Location - Industrial/Commercial
  • Performance Curve: Reference Letter "A" for this pump (see performance curve in photos in this listing)
  • Motor: 1/2 Hp
  • Voltage: 115/230V
  • Phase: 1
  • Hertz: 60
  • Motor Type: TEFC
  • Amp Draw @ 115V: 9
  • Amp Draw @ 230V: 5
  • Suction Port: 1" - NPT Threaded
  • Discharge Port: 1" - NPT Threaded
  • Flow: 3000 GPH (50 GPM)
  • Maximum Pressure: 23 PSI
  • Maximum Total Head: 53 Ft
  • Construction: Cast Iron (available in Stainless Steel - please inquire)
  • Volute: Dual
  • Seal: Buna-N Mechanical (optional Viton and Silicon Carbide available - see Optional Items below)
  • O Ring: Buna-N Mechanical (optional Viton and Silicon Carbide available - see Optional Items below)
  • Impeller: Self-Cleaning, Semi-Open
  • Solids Handling Capacity: 1/8"
  • Priming: Self-Priming to 20 Ft
  • Maximum Temperature: 180ºF
  • Maximum Working Pressure: 75 PSI
  • Power Cord/Plug: N/A.  This is a hardwire pump.  We recommend a licensed and insured electrician to run power to this pump
  • Note: we carry a full line of accessories including hoses, strainers, seal kits, wheel and dolly kits and more.  Please inquire
  • Optional Item: Model VIR285X301VS - Silicon Carbide/Viton Seal & O Ring - Factory Installed
  • Optional Item: Model VIR285X301V0 - Viton Type 6 Seal & O Ring - Factory Installed
  • Overall Dimensions: 17.3" L x 8.8" W x 7.2" H
  • Ship Weight: 42 Lbs
  • 1 Year Warranty - Includes Parts & Labor
  • Made in the USA
