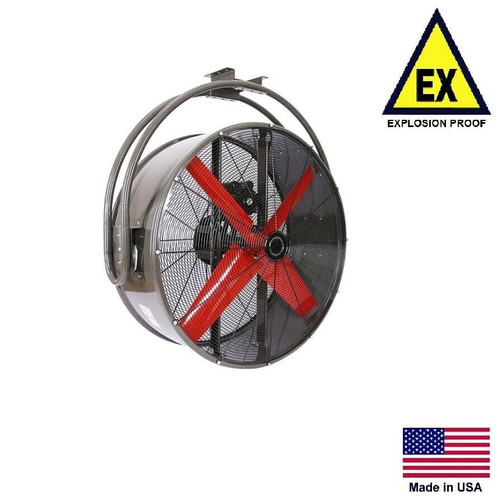

CIRCULATION FAN Explosion Proof - Ceiling Mounted - 48" - 115/230V - 19,460 CFM

*WE OFFER FREE SHIPPING TO ANYWHERE IN THE CONTIGUOUS (LOWER 48) UNITED STATES.  ALL OTHER DESTINATIONS, PLEASE CONTACT US FOR A FREIGHT QUOTE*

________________________________________________________________________________________________________________

Model: VIRCMB4815HLU

Condition: New

Description: Ceiling Mounted Circulation Fan - Explosion Proof/Hazardous Location - Commercial/Industrial

Features: 48" - 115/230V - 1 Phase - 1 Hp - 1 Speed - 19,460 CFM - Belt Drive - 90º Tilt - 360º Swivel - Automatic Belt Tensioning - Rolled Steel Barrel - Powder Coat Finish - Explosion Proof/Hazardous Location - Made in the USA

Payment Options: We Accept all Major Credit Cards, Personal & Business Checks, Bank Wire Transfers

Shipping: Free Shipping within the Lower 48 United States.  We also Ship Worldwide via Air, Ocean and Common Carrier.  Contact us for a Freight Quote

Discounts: We Offer Multiple Item Purchase Discounts - Please Inquire

______________________________________________________________________________________________________

SEE OUR FULL LINE OF FANS, COOLERS, BLOWERS AND ACCESSORIES IN OUR EBAY STORE BY CLICKING THE "VISIT STORE" LINK ABOVE UNDER SELLER INFORMATION

Questions?  Click the "Contact Seller" Link Above (under Seller Information) or Find us on the Web at Streamline Industrial a VirTau Company

This Series of Ceiling and Wall Mounted Fans come in the Following Configurations:

Sizes ranging from 36" through 48"

Direct Drive & Belt Drive Configurations

3 and 4 Blade Systems

Output Ranges from 6,600 CFM to 19,460 CFM

Voltage Ranges from 115/230V, 1 Phase and 230/460V, 3 Phase

50 Hz & 60Hz Available on Most Models

Available in Standard and Explosion Proof/Hazardous Location Configurations

Available Accessories Include: Wall/Ceiling/Beam Mounting Bracket (see photo is this listing)

Description & Specifications:

• Commercial/Industrial Ceiling Mounted Explosion Proof/Hazardous Location Circulation Fan
• Our line of commercial/industrial fans, coolers and blowers are designed for continuous operation.  Recommended for use in manufacturing and assembly facilities, gymnasiums, machine shops, dairies, livestock barns, aircraft hangars and similar
• Explosion Proof Motor Certifications: Division 1, Class 1, Group D and Class II, Groups F & G
• Fan Type: Circulation - Explosion Proof/Hazardous Location - Industrial/Commercial
• Blade Diameter: 48"
• Drive Type: Belt
• Belt Tensioning: Automatic
• Horsepower: 1
• Voltage: 115/230V
• Phase: 1
• Hertz: 60
• Amp Draw @ 115V: 11
• Amp Draw @ 230V: 6.2
• Motor Speeds: 1
• Airflow: 19,460 CFM
• Tilt: 90º Up and Down
• Swivel: 360º
• Power Cord: 3 Conductor with Molded Plug
• Barrel Construction: Cold-Rolled Steel
• Finish: Powder Coat
• Fan Blades: Aluminum - Spark Proof
• Certifications & Approvals: Meets OSHA Requirements
• Optional Item: Model VIRVMB111 - Mounting Bracket - Ceiling/Wall/Beam (please inquire)
• Overall Dimensions: 63" H x 57" W x 24" D
• Please allow 2 to 3 weeks for delivery, we build this fan to order
• Ship Weight: 327 Lbs
• 1 Year Warranty (Includes Parts & Labor)
• Made in the USA
