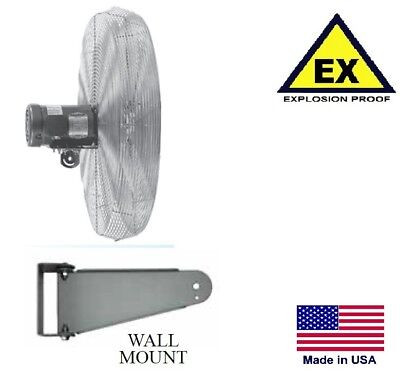

CIRCULATOR FAN - Explosion Proof - 30" - 480V - 3 Ph - 1 Speed - 5400 CFM

*WE OFFER FREE SHIPPING TO ANYWHERE IN THE CONTIGUOUS (LOWER 48) UNITED STATES.  ALL OTHER DESTINATIONS, PLEASE CONTACT US FOR A FREIGHT QUOTE*

________________________________________________________________________________________________________________

Model: VIRWB653394

Condition: New

Description: Circulator Fan - Explosion Proof/Hazardous Location

Features: 30" Blade Diameter - Direct Drive - 480V - 3 Phase - 1/4 Hp - 5400  CFM - 1 Speed - Explosion Proof, Enclosed Permanently Lubricated Commercial Duty Motor - This is a Hard Wire Fan (a power cord and plug are not included) - Aluminum Propellers - Explosion Proof Class 1, Group D & Class 2, Groups F & G - OSHA Approved - UL and cETL Listed - Made in the USA

Payment Options: We Accept all Major Credit Cards, Personal & Business Checks, Bank Wire Transfers

Shipping: We Ship Worldwide via Air, Ocean and Common Carrier.  Contact us for a Freight Quote

Discounts: We Offer Multiple Item Purchase Discounts - Please Inquire

______________________________________________________________________________________________________

SEE OUR FULL LINE OF EXHAUST FANS BY FOLLOWING THIS LINK: OUR EXHAUST FAN LINE

THIS LINE OF COMMERCIAL/AGRICULTURAL EXHAUST FANS IS AVAILABLE WITH THE FOLLOWING OPTIONAL CONFIGURATIONS:

Sizes Range: 24" to 30"

Voltages: 115/230V, 240V, 230/460V & 480V

Power Phase: 1 & 3 Phase

Hertz: 50 Hz and 60 Hz Models Available

Speeds: 1 Speed

Wiring: Hard Wire Only

Questions?  Click the "Contact Seller" Link Above or Give us Call Toll Free

Description & Specifications:

• Commercial/Industrial Explosion Proof/Hazardous Location Circulator Fan
• Our line of Industrial Explosion Proof/Hazardous Location Circulator Fans provide continuous duty operation capabilities
• Recommeded for use in manufacturing facilities, assembly plants, automotive industries and similar settings where air movement is needed to circulate air contaminated with materials classified as hazardous or have explosion potential
• Features an industrial continuous duty explosion proof motor and aluminum spark-resistant blades.  Note: wiring must be in accordance with local, state and national codes and be performed by a qualified electrician.  We recommend a licensed and insured electrician that is fully educated on the application at the time of installation
• Fan Type: Circulator - Explosion Proof/Hazardous Location - Industrial/Commercial
• Blade Diameter: 30"
• Drive System: Direct
• Horsepower: 1/4 Hp
• Motor Type: Explosion Proof/Hazardous Location (Class I, Div I, Group D and Class II, Div I, Groups F & G)
• Voltage: 480V
• Phase: 3
• Amp Draw @ 240V: 3.4
• Motor Speeds: 1
• CFM: 5,400
• Power Cord: N/A - This is a hardwire fan.  We recommend that you contact a licensed and insured electrician to run power to this fan
• Please allow 2 weeks for delivery - we build our fans to order
• Ship Weight: 31 Lbs
• 1 Year Warranty (Includes Parts & Labor)
• Made in the USA
