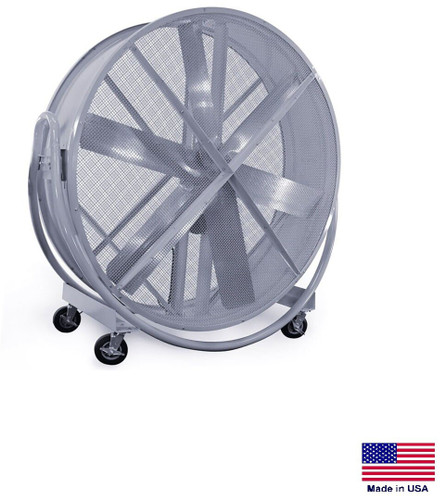

DRUM FAN Dolly Mounted - Belt Drive 84" - 1 Hp - 115V - 1 Phase - 47,500 CFM

(No reviews yet) Write a Review
$7,461.25
SKU:
RVIRGB8415V
DRUM FAN Dolly Mounted - Belt Drive 84" - 1 Hp - 115V - 1 Phase - 47,500 CFM
View Details
*WE OFFER FREE SHIPPING TO ANYWHERE IN THE CONTIGUOUS (LOWER 48) UNITED STATES.  ALL OTHER DESTINATIONS, PLEASE CONTACT US FOR A FREIGHT QUOTE*

___________________________________________________________________________________________________________

Model: VIRGB8415V

Condition: New

Description: Exhaust Fan - Commercial/Industrial

Features: 84" Blade Diameter - Belt Drive - 1 Hp - 115V - 1 Phase - 47,500 CFM - Includes 20 Ft Power Cord with Molded Plug - Delivers Air up to 150 Ft from Fan - Quiet Operation - Polyester Powder-Coat Finish - Designed for Continuous Duty Operation - Made in the USA

Payment Options: We Accept all Major Credit Cards, Personal & Business Checks, Bank Wire Transfers

Shipping: Free Shipping within the Lower 48 United States.  We also Ship Worldwide via Air, Ocean and Common Carrier.  Contact us for a Freight Quote

Discounts: We Offer Multiple Item Purchase Discounts - Please Inquire

______________________________________________________________________________________________________



SEE OUR FULL LINE OF FANS, COOLERS, BLOWERS AND ACCESSORIES IN OUR EBAY STORE BY CLICKING THE "VISIT STORE" LINK ABOVE UNDER SELLER INFORMATION



Questions?  Click the "Contact Seller" Link Above (under Seller Information) or Find us on the Web at Streamline Industrial a VirTau Company



This Line of Commercial/Industrial Drum Fans Feature the Following Options and Configurations:



Size: 84"

Drive System: Belt Drive

Air Flow: 47,500 CFM

Voltages Available: 115V, 1 Phase - 230V, 1 Phase - 230V, 3 Phase and 460V, 3 Phase

Hertz: 50 Hz & 60Hz Models Available

Speeds: 1 Speed and Variable Speed Models Available

Available Accessories Include: Thermostat

Mounting Options: Dolly Mounted and Ceiling or Beam Suspended Models Available

Configurations Available: Standard and Explosion Proof/Hazardous Location




Description & Specifications:

  • Commercial/Industrial High Velocity Drum Fan
  • Heavy duty design provides continuous operation in commercial, industrial and institutional applications, manufacturing and assembly workshops, warehouses, loading docks, sporting events and similar
  • Features: Quiet operation (60 dB at 20 Ft), all of our fans and optional equipment have been tested and certified under actual operating conditions, commercial polyester powder coat finish, single phase fans in this series come with a 20 Ft power cord and molded plug
  • Fan Type: Drum - Dolly Mounted - Commercial/Industrial
  • Drive System: Belt
  • Blade Diameter: 84"
  • Motor: 1 Hp - TEAO
  • Voltage: 115V
  • Phase: 1
  • Amp Draw: 10
  • Hertz: 60
  • Air Flow: 47,500 CFM
  • Noise Level: 60 dB at 20 Ft
  • Speeds: 1 (variable speed models available, please inquire)
  • RPM: 220
  • FPM: See Photo in the Listing
  • Propeller Blades: 6
  • Finish: Polyester Powder Coat
  • Power Cord: Included - 20 Ft, 3 Conductor Cord with Molded Plug
  • Drawing Available on Request
  • Optional Item: Model VIRTS - Thermostat - Available for 1 Phase Fans Through 1 Hp - See Photo in the Listing - please inquire
  • Note: please allow 18 to 24 days for delivery - we build this fan to order
  • Overall Dimensions: 96" W x 95" H x 35" D (dimensions include dolly as shown)
  • Ship Weight: 680 Lbs
  • 2 Year Warranty (Includes Parts & Labor)
  • Made in the USA
