Model: VIRWBB202340 & VIRWBB202330
Condition: New
Description: Electric Heater - Explosion Proof/Hazardous Location - Commercial/Industrial
Features: 10,250 BTU - 3,000 Watts - 208 Volt - 3 Phase - 9.8 Amps - Designed for Use in Hazardous Locations where the Possibility of Explosion or Fire Caused by Flammable Gases, Vapors, Powdered Metals or Dust - Adjustable Louvers - Fan Forced - Recommended for Use in the Following Classes and Groups: Class I, Groups C & D, Division 1 & 2 and Class II, Groups E, F & G, Divisions 1 & 2, Temperature Code T3B for 329ºF (165ºC) - Includes Wall Bracket Mounting Arm - ETL Certified - Made in the USA
Payment Options: We Accept all Major Credit Cards, Personal & Business Checks, Bank Wire Transfers
Shipping: We Ship Worldwide via Air, Ocean and Common Carrier. Contact us for a Freight Quote
Discounts: We Offer Multiple Item Purchase Discounts - Please Inquire
______________________________________________________________________________________________________
SEE OUR FULL LINE OF ELECTRIC HEATERS BY FOLLOWING THIS LINK: OUR ELECTRIC HEATER & ACCESSORIES LINE
This line of Commercial/Industrial Hazardous Location Heaters is Available in the Following Configurations:
Wattages: 3,000 to 25,000
BTUs: 10,250 to 85,400
Voltages: 208V, 240V, 480V and 600V
Phases: 1 & 3
Amp Draws: 4.3 to 44
Questions? Click the "Contact Seller" Link Above or Give us a Call Toll Free
Description & Specifications:
- Industrial/Commercial Explosion Proof/Hazardous Location Fan Forced Electric Heater with Wall Bracket Mounting Arm
- Our heavy duty USA made commercial/industrial explosion proof/hazardous location heaters are heavy duty units are designed for use in hazardous locations where the possibility of explosion or fire caused by flammable gases, vapors, powdered metals or dust
- Recommended for use in the following classes and groups: Class I, Groups C & D, Division 1 & 2 and Class II, Groups E, F & G, Divisions 1 & 2, Temperature Code T3B for 329ºF (165ºC), ABS Type Approved and ETL Listed
- Features a heavy duty 14 gauge steel cabinet with an epoxy powder coat finish, narrow gap safety fan guard, adjustable louvers, permanently sealed liquid to air finned tube heat exchanger core, ethylene glycol to water mixture uses a heat transfer liquid in the heater core for freeze damage protection, manual reset capillary type high limit provides high temperature regulation and is rated for 6,000 cycles of service, 24V transformer and contactor, pressure relief valve with cintered metal mesh flame arrestor
- Heater Type: Electric - Explosion Proof/Hazardous Location - Industrial/Commercial
- Watts: 3,000
- BTU: 10,250
- Volts: 208V
- Phase: 3
- Amp Draw: 9.8
- Fan Forced Air Flow: 580 CFM
- Air Throw: 24 Ft
- Temperature Rise: 16.5ºF
- Recommended Minimum Mounting Height: 8 Ft

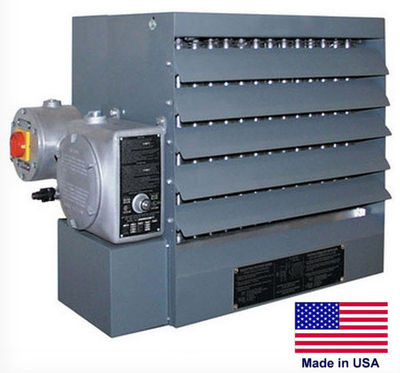

- NOTE: The photo in this listing shows the heater with the OPTIONAL pilot light and disconnect switch mounted on the side. These two optional items are not included and are optional accessories (see Optional Items below)
- Includes Wall Bracket Mounting Arm (see photo in this listing)
- Listings, Approvals & Certifications: ETL Certified
- Optional Item: Model VIRWBB202338 - Pilot Light - Factory installed if ordered at same time as heater (Please Inquire)
- Optional Item: Model VIRWBB202337 - Disconnect Switch for Hazardous Location - Factory installed if ordered at same time as heater (Please Inquire)
- Optional Item: Model VIRWBB202321 - Control Transformer with Primary Fusing - Factory Installed if ordered at same time as heater (Please Inquire)
- Optional Item: Model VIRWBB202320 - Single Pole Thermostat for Hazardous Location - Factory Installed if ordered at the same time as heater (Please Inquire)
- Optional Item: Model VIRWBB202296 - Pipe Mounting Kit (Please Inquire)
- Optional Item: Model VIRWBB202311 - Ceiling Mounting Kit (Please Inquire)
- Overall Dimensions: 22.5" H x 17.75" W x 21" D
- Please allow 2 to 3 weeks for delivery as we build this heater to order
- Ship Weight: 183 Lbs
- 1 Year Warranty (Includes Parts & Labor)
- Made in the USA
