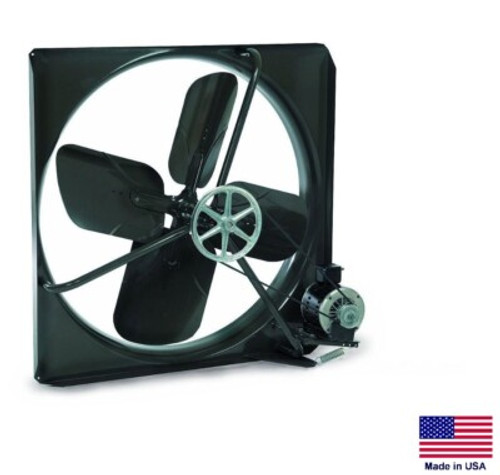

EXHAUST FAN Commercial - Belt Drive - 42" - 230V - 1 Phase - 1/2 Hp - 14,300 CFM

(No reviews yet) Write a Review
$1,111.31
SKU:
RVIRV4213W
EXHAUST FAN Commercial - Belt Drive - 42" - 230V - 1 Phase - 1/2 Hp - 14,300 CFM
View Details
*WE OFFER FREE SHIPPING TO ANYWHERE IN THE CONTIGUOUS (LOWER 48) UNITED STATES.  ALL OTHER DESTINATIONS, PLEASE CONTACT US FOR A FREIGHT QUOTE*

________________________________________________________________________________________________________________

Model: VIRV4213W

Condition: New

Description: Exhaust Fan - Commercial

Features: 42" Blade Diameter - 14,300 CFM - 1/2 Hp - 230V - 1 Phase - 1 Speed - Belt Drive - Deep Pitched Blades for Maximum Air Flow - Automatic Belt Tensioner - All Welded Construction - Powder Coat Finish - Optional Shutters/Louvers, Grill Guard and Rain Hood Available (see Optional Items below)  - Made in the USA

Payment Options: We Accept all Major Credit Cards, Personal & Business Checks, Bank Wire Transfers and Financing through PayPal Credit

Shipping: Free Shipping within the Lower 48 United States.  We also Ship Worldwide via Air, Ocean and Common Carrier.  Contact us for a Freight Quote

Discounts: We Offer Multiple Item Purchase Discounts - Please Inquire

______________________________________________________________________________________________________



SEE OUR FULL LINE OF FANS, COOLERS, BLOWERS AND ACCESSORIES IN OUR EBAY STORE BY CLICKING THE "VISIT STORE" LINK ABOVE UNDER SELLER INFORMATION



Questions?  Click the "Contact Seller" Link Above (under Seller Information) or Find us on the Web at Streamline Industrial a VirTau Company



THIS LINE OF COMMERCIAL EXHAUST FANS IS AVAILABLE IN FOLLOWING CONFIGURATIONS:

Sizes Range: 24" to 48"

Motors from 1/3 to 3/4 Hp - Single and Two Speed Models Available

Voltage Range: 115V, 115/230V and 230/460V

CFM Range: 3,900 to 18,100

All sizes of this series of exhaust fans are available in hazardous location / explosion proof configurations - please inquire

All sizes of this series are available in reverse configurations for use as intake fans - please inquire



Description & Specifications:

  • Commercial Heavy Duty Exhaust Fan
  • Our USA made commercial exhaust fans provide continuous duty operation capabilities
  • Recommended for use in manufacturing facilities, assembly plants, automotive industries, barns, poultry houses, greenhouses, garages and similar settings where air movement is needed to control condensation, remove stagnant air and provide fresh air flow
  • Features: Heavy duty all welded steel construction, deep pitch blades for maximum air flow, rolled venturi for improved air flow, automatic belt tensioner, two speed motors available on models through 1/2 Hp in single phase models only, commercial grade polyester powder coat finish, Made in the USA
  • Fan Type: Exhaust - Belt Driven - Commercial
  • Blade Diameter: 42"
  • Drive System: Belt
  • Voltage: 230V
  • Phase: 1
  • Horsepower: 1/2
  • Amp Draw: 5.6
  • CFM: 14,300
  • Motor Type: ODP (TEFC motors available)
  • Motor Speeds: 1
  • Power Cord: N/A - Hardwire Required
  • Belt Tensioning: Automatic
  • Optional Item: Model VIRIWS42 - Shutters/Louvers - please inquire
  • Optional Item: Model VIRVG42 - Fan/Grill Guard - Mounts on Housing Behind Motor - please inquire
  • Optional Item: Model VIRRH42 - Rain Hood - please inquire
  • Optional Item: Model VIR2SPDM- 2 Speed Motor - please inquire
  • Overall Dimensions: 46" W x 46" H x 16.25" D
  • Please allow 2 weeks for delivery - we build this fan to order
  • Ship Weight: 96 Lbs
  • 1 Year Warranty (Includes Parts & Labor)
  • Made in the USA



*WE OFFER FREE SHIPPING TO ANYWHERE IN THE CONTIGUOUS (LOWER 48) UNITED STATES.  ALL OTHER DESTINATIONS, PLEASE CONTACT US FOR A FREIGHT QUOTE*
