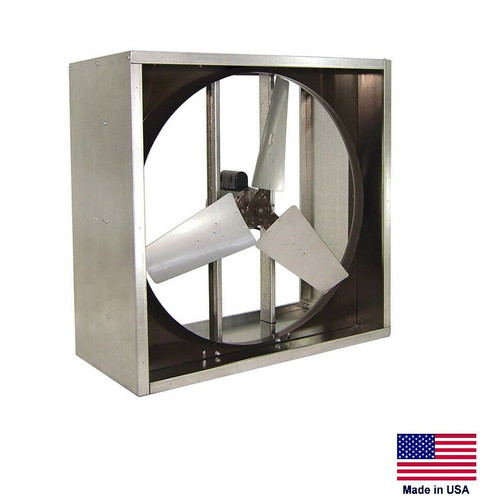

EXHAUST FAN Commercial - Direct Drive 36" - 1 Hp - 230V - 1 Ph - 13,500 CFM

(No reviews yet) Write a Review
$1,605.05
SKU:
RVIRVID3615TW
EXHAUST FAN Commercial - Direct Drive 36" - 1 Hp - 230V - 1 Ph - 13,500 CFM
View Details
*WE OFFER FREE SHIPPING TO ANYWHERE IN THE CONTIGUOUS (LOWER 48) UNITED STATES.  ALL OTHER DESTINATIONS, PLEASE CONTACT US FOR A FREIGHT QUOTE*

___________________________________________________________________________________________________________

Model: VIRVID3615TW

Condition: New

Description: Exhaust Fan - Commercial/Industrial

Features: 36" Diameter - Direct Drive - 1 Hp - 230V - 1 Phase - 13,500 CFM - Includes 6 Ft Power Cord and Molded Plug - Heavy Duty Galvanized Housing - Made in the USA

Payment Options: We Accept all Major Credit Cards, Personal & Business Checks, Bank Wire Transfers and Financing through PayPal Credit

Shipping: Free Shipping within the Lower 48 United States.  We also Ship Worldwide via Air, Ocean and Common Carrier.  Contact us for a Freight Quote

Discounts: We Offer Multiple Item Purchase Discounts - Please Inquire

______________________________________________________________________________________________________



SEE OUR FULL LINE OF FANS, COOLERS, BLOWERS AND ACCESSORIES IN OUR EBAY STORE BY CLICKING THE "VISIT STORE" LINK ABOVE UNDER SELLER INFORMATION



Questions?  Click the "Contact Seller" Link Above (under Seller Information) or Find us on the Web at Streamline Industrial a VirTau Company



This Line of Commercial/Industrial Exhaust and Intake Fans Feature the Following Options and Configurations:



Sizes ranging from 24" through 48"

Direct Drive

Output Ranges from 5,910 CFM to 19,900 CFM

Voltage Ranges from 115V, 1 Phase, 230V, 1 Phase and 230/460V, 3 Phase

50 Hz & 60Hz Available on Most Models

Available Accessories Include: Shutters/Louvers, Weather Hoods, Front and Rear Wire Fan Guards and Electric Shutter/Louver Operators




Description & Specifications:

  • Commercial/Industrial Heavy Duty Exhaust Fan
  • Heavy duty design provides continuous operation in commercial, industrial and institutional applications, manufacturing and assembly workshops, warehouses and similar
  • Features: All of our fans and optional equipment have been tested and certified under actual operating conditions, heavy duty galvanized construction for corrosion resistance in harsh atmospheres, polyester powder coat finish, single phase fans in this series come with a 6 Ft power cord and molded plug
  • Fan Type: Exhaust - Commercial/Industrial
  • Drive System: Direct
  • Blade Diameter: 36"
  • Motor: 1 Hp - TEAO
  • Voltage: 230V
  • Phase: 1
  • Amp Draw: 4.6
  • Hertz: 60
  • Air Flow: 13,500 CFM
  • Propeller Blades: 3
  • Power Cord: Included - 6 Ft Cord with Molded Plug
  • Drawing Available on Request
  • Optional Item: Model VIRIWS - Shutters/Louvers - please inquire
  • Optional Item: Model VIRVG - Fan/Grill Guard - Mounts on Housing for Intake and Exhaust - please inquire
  • Optional Item: Model VIRRH - Rain Hood - please inquire
  • Optional Item: Model VIRMSO - Manual Shutter Operator - Pull Chain - please inquire
  • Optional Item: Model VIRESO - Electric Shutter Operator - 115V - 1 Phase - please inquire
  • Optional Item: Model VIR2SPDM- 2 Speed Motor - Available on Models with Motors Through 1/2 Hp - please inquire
  • Optional Item: Model VIRTS - Thermostat - Available for 1 Phase Fans Through 1 Hp - See Photo in the Listing - please inquire
  • Overall Dimensions: 40.75" W x 40.75" H x 20" D
  • Ship Weight: 140 Lbs
  • 2 Year Warranty (Includes Parts & Labor)
  • Made in the USA
