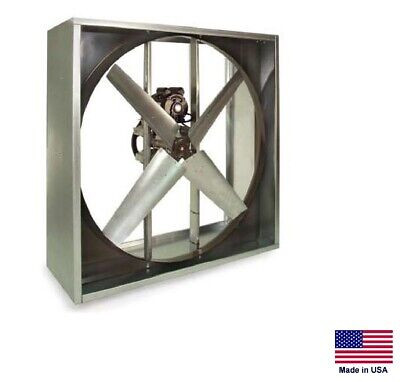

EXHAUST FAN Industrial - Belt Drive - 30" - 1/2 Hp - 115/230V - 9,180 CFM - TEFC
- SKU:
- RVIRVI3013TU
___________________________________________________________________________________________________________
Model: VIRVI3013TU
Condition: New
Description: Exhaust Fan - Industrial
Features: 30" Diameter - Belt Drive - 115/230V - 1/2 Hp TEFC - 1 Phase - 9,180 CFM - Includes 10 Ft Power Cord and Molded Plug - Automatic Belt Tensioning - Polyester Powder Coated Rolled Inlet Venturi - Heavy Duty Galvanized Housing - Made in the USA
Payment Options: We Accept all Major Credit Cards, Personal & Business Checks, Bank Wire Transfers
Shipping: Free Shipping within the Lower 48 United States. We also Ship Worldwide via Air, Ocean and Common Carrier. Contact us for a Freight Quote
Discounts: We Offer Multiple Item Purchase Discounts - Please Inquire
______________________________________________________________________________________________________
SEE OUR FULL LINE OF FANS, COOLERS, BLOWERS AND ACCESSORIES IN OUR EBAY STORE BY CLICKING THE "VISIT STORE" LINK ABOVE UNDER SELLER INFORMATION
Questions? Click the "Contact Seller" Link Above (under Seller Information) or Find us on the Web at Streamline Industrial a VirTau Company
Size Range: 24" through 60"
Drive System: Belt Drive
Output Range: 4,190 to 43,500 CFM
Motors Speeds: 1 & 2 Speed Models (2 Speed Motors Available on 1 Phase Fans, 1/2 Hp and Below)
Voltages: 115/230V, 1 Phase and 230/460V, 3 Phase
Motor Types: ODP, TEFC and HL
Hertz: 50 Hz & 60Hz
Description & Specifications:
- Industrial Heavy Duty Exhaust Fan
- Heavy duty design provides continuous operation capability in industrial, commercial and institutional applications, manufacturing and assembly facilities, factories, warehouses, gymnasiums, greenhouses, workshops, barns and similar
- Features: All of our fans and optional equipment are tested and certified under actual operating conditions, heavy duty galvanized construction with polyester powder coated rolled inlet venturi for efficient air flow and corrosion resistance in harsh atmospheres, single phase fans in this series come with a 10 Ft power cord and molded plug
- Fan Type: Exhaust - Industrial/Commercial
- Drive System: Belt (with automatic belt tensioning)
- Blade Diameter: 30"
- Motor: 1/2 Hp
- Motor Type: TEFC (ODP and HL models available)
- Voltage: 115/230V
- Phase: 1
- Amp Draw @ 115V: 9.8
- Amp Draw @ 230V: 4.9
- Hertz: 60
- Air Flow: 9,180 CFM
- Propeller Blades: 4
- Power Cord: Included - 10 Ft Cord with Molded Plug
- Drawing: See Photo in this Listing
- Optional Item: Model VIRIWS - Shutters/Louvers - Gravity Operated - see photo in this listing - please inquire
- Optional Item: Model VIRVG - Fan/Grill Guard - Mounts on Housing for Intake and Exhaust - see photo in this listing - please inquire
- Optional Item: Model VIRRH - Rain/Weather Hood - see photo in this listing - please inquire
- Optional Item: Model VIRAD - Automatic Doors - see photo in this listing - please inquire
- Optional Item: Model VIRMSO - Manual Shutter Operator - Pull Chain - please inquire
- Optional Item: Model VIRESO - Electric Shutter Operator - 115V - 1 Phase - see photo in this listing - please inquire
- Optional Item: Model VIR2SPDM- 2 Speed Motor - Available on 1 Phase Motors through 1/2 Hp
- Optional Item: Model VIRTS - Thermostat - Available for 1 Phase Fans Through 1 Hp - see photo in this listing - please inquire
- Overall Dimensions: 34.75" W x 34.75" H x 20" D
- Ship Weight: 112 Lbs
- 2 Year Warranty (Includes Parts & Labor)
- Made in the USA
