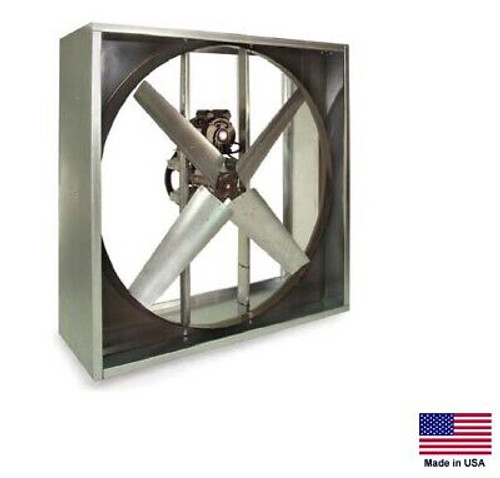

EXHAUST FAN Industrial - Belt Drive - 42" - 1.5 Hp - 230/460V - 3 Ph 17,200 CFM

(No reviews yet) Write a Review
$2,086.59
SKU:
RVIRVI4216X
*WE OFFER FREE SHIPPING TO ANYWHERE IN THE CONTIGUOUS (LOWER 48) UNITED STATES.  ALL OTHER DESTINATIONS, PLEASE CONTACT US FOR A FREIGHT QUOTE*

___________________________________________________________________________________________________________

Model: VIRVI4216X

Condition: New

Description: Exhaust Fan - Industrial

Features: 42" Diameter - Belt Drive - 230/460V - 1.5 Hp - 3 Phase - 17,200 CFM - Automatic Belt Tensioning - Polyester Powder Coated Rolled Inlet Venturi - Heavy Duty Galvanized Housing - Made in the USA

Payment Options: We Accept all Major Credit Cards, Personal & Business Checks, Bank Wire Transfers and Financing through PayPal Credit

Shipping: Free Shipping within the Lower 48 United States.  We also Ship Worldwide via Air, Ocean and Common Carrier.  Contact us for a Freight Quote

Discounts: We Offer Multiple Item Purchase Discounts - Please Inquire

______________________________________________________________________________________________________



SEE OUR FULL LINE OF FANS, COOLERS, BLOWERS AND ACCESSORIES IN OUR EBAY STORE BY CLICKING THE "VISIT STORE" LINK ABOVE UNDER SELLER INFORMATION



Questions?  Click the "Contact Seller" Link Above (under Seller Information) or Find us on the Web at Streamline Industrial a VirTau Company



This Line of Industrial Exhaust Fans Feature the Following Options and Configurations:

Size Range: 24" through 60"

Drive System: Belt Drive

Output Range: 4,190 to 43,500 CFM

Motors Speeds: 1 & 2 Speed Models (2 Speed Motors Available on 1 Phase Fans, 1/2 Hp and Below)

Voltages: 115/230V, 1 Phase and 230/460V, 3 Phase

Motor Types: ODP, TEFC and HL

Hertz: 50 Hz & 60Hz

Available Accessories Include: Shutters/Louvers, Automatic Doors, Weather/Rain Hoods, Front and Rear Wire Fan Guards, Electric Shutter/Louver Operators, ODP, TEFC and HL Motors and Explosion Proof Configuration




Description & Specifications:

  • Industrial Heavy Duty Exhaust Fan
  • Heavy duty design provides continuous operation capability in industrial, commercial and institutional applications, manufacturing and assembly facilities, factories, warehouses, gymnasiums, greenhouses, workshops, barns and similar
  • Features: All of our fans and optional equipment are tested and certified under actual operating conditions, heavy duty galvanized construction with polyester powder coated rolled inlet venturi for efficient air flow and corrosion resistance in harsh atmospheres, single phase fans in this series come with a 10 Ft power cord and molded plug, three phase fans are hard-wire
  • Fan Type: Exhaust - Industrial/Commercial
  • Drive System: Belt (with automatic belt tensioning)
  • Blade Diameter: 42"
  • Motor: 1.5 Hp
  • Motor Type: ODP (TEFC and HL models available)
  • Voltage: 230/460V
  • Phase: 3
  • Amp Draw @ 230V: 5.2
  • Amp Draw @ 460V: 2.6
  • Hertz: 60
  • Air Flow: 17,200 CFM
  • Propeller Blades: 4
  • Power Cord: N/A - this is a hard-wire fan
  • Drawing: See Photo in this Listing
  • Optional Item: Model VIRIWS - Shutters/Louvers - Gravity Operated - see photo in this listing - please inquire
  • Optional Item: Model VIRVG - Fan/Grill Guard - Mounts on Housing for Intake and Exhaust - see photo in this listing - please inquire
  • Optional Item: Model VIRRH - Rain/Weather Hood - see photo in this listing - please inquire
  • Optional Item: Model VIRAD - Automatic Doors - see photo in this listing - please inquire
  • Optional Item: Model VIRMSO - Manual Shutter Operator - Pull Chain - please inquire
  • Optional Item: Model VIRESO - Electric Shutter Operator - 115V - 1 Phase - see photo in this listing - please inquire
  • Optional Item: Model VIR2SPDM- 2 Speed Motor - Available on 1 Phase Motors through 1/2 Hp
  • Optional Item: Model VIRTS - Thermostat - Available for 1 Phase Fans Through 1 Hp - see photo in this listing - please inquire
  • Overall Dimensions: 46.75" W x 46.75" H x 20" D
  • Ship Weight: 185 Lbs
  • 2 Year Warranty (Includes Parts & Labor)
  • Made in the USA
