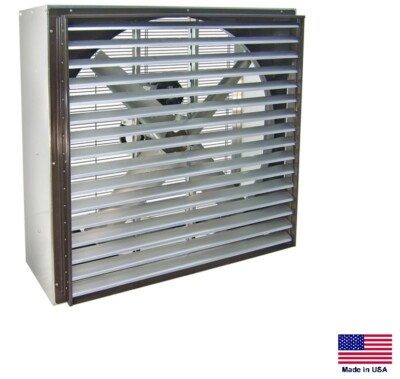

EXHAUST FAN Industrial - Combination - 36" - 2 Hp - 230/460V - 3 Ph - 12,780 CFM

(No reviews yet) Write a Review
$2,882.26
SKU:
RVIRVIK3617X
EXHAUST FAN Industrial - Combination - 36" - 2 Hp - 230/460V - 3 Ph - 12,780 CFM
View Details
*WE OFFER FREE SHIPPING TO ANYWHERE IN THE CONTIGUOUS (LOWER 48) UNITED STATES.  ALL OTHER DESTINATIONS, PLEASE CONTACT US FOR A FREIGHT QUOTE*

___________________________________________________________________________________________________________

Model: VIRVIK3617X

Condition: New

Description: Exhaust Fan with Blade Guards and Shutter - Industrial

Features: 36" Diameter - Belt Drive - 230/460V - 2 Hp ODP - 3 Phase - 12,780 CFM - Includes Shutters/Louvers and Wire Blade Guard on Rear - Automatic Belt Tensioning - Polyester Powder Coated Rolled Inlet Venturi - Heavy Duty Galvanized Housing - Made in the USA

Payment Options: We Accept all Major Credit Cards, Personal & Business Checks, Bank Wire Transfers

Shipping: Free Shipping within the Lower 48 United States.  We also Ship Worldwide via Air, Ocean and Common Carrier.  Contact us for a Freight Quote

Discounts: We Offer Multiple Item Purchase Discounts - Please Inquire

______________________________________________________________________________________________________



SEE OUR FULL LINE OF FANS, COOLERS, BLOWERS AND ACCESSORIES IN OUR EBAY STORE BY CLICKING THE "VISIT STORE" LINK ABOVE UNDER SELLER INFORMATION



Questions?  Click the "Contact Seller" Link Above (under Seller Information) or Find us on the Web at Streamline Industrial a VirTau Company



This Line of Industrial Exhaust Fans Feature the Following Options and Configurations:

Size Range: 24" through 60"

Drive System: Belt Drive

Output Range: 4,190 to 43,500 CFM

Motors Speeds: 1 & 2 Speed Models (2 Speed Motors Available on 1 Phase Fans, 1/2 Hp and Below)

Voltages: 115/230V, 1 Phase and 230/460V, 3 Phase

Motor Types: ODP and TEFC

Hertz: 50 Hz & 60Hz

Available Accessories Include: Shutters/Louvers, Automatic Doors, Weather/Rain Hoods, Front and Rear Wire Fan Guards, Electric Shutter/Louver Operators, ODP and TEFC Motors and Explosion Proof Configuration




Description & Specifications:

  • Industrial Heavy Duty Exhaust Fan with Shutters/Louvers and Wire Blade Guard on Rear
  • Heavy duty design provides continuous operation capability in industrial, commercial and institutional applications, manufacturing and assembly facilities, factories, warehouses, gymnasiums, greenhouses, workshops, barns and similar
  • Features: All of our fans and optional equipment are tested and certified under actual operating conditions, heavy duty galvanized construction with polyester powder coated rolled inlet venturi for efficient air flow and corrosion resistance in harsh atmospheres, single phase fans in this series come with a 10 Ft power cord and molded plug
  • Fan Type: Exhaust - Industrial/Commercial
  • Drive System: Belt (with automatic belt tensioning)
  • Blade Diameter: 36"
  • Motor: 2 Hp
  • Motor Type: ODP (TEFC and HL models available)
  • Voltage: 230/460V
  • Phase: 3
  • Amp Draw @ 230V: 6.8
  • Amp Draw @ 460V: 3.4
  • Hertz: 60
  • Air Flow: 12,780 CFM
  • Propeller Blades: 4
  • Power Cord: N/A - this is a hard-wire fan
  • Shutters/Louvers: Included
  • Wire Blade Guard: Included - Rear Mounted Behind Motor
  • Drawing: See Photo in this Listing
  • Optional Item: Model VIRRH - Rain/Weather Hood - see photo in this listing - please inquire
  • Optional Item: Model VIR2SPDM- 2 Speed Motor - Available on 1 Phase Motors through 1/2 Hp
  • Optional Item: Model VIRTS - Thermostat - Available for 1 Phase Fans Through 1 Hp - see photo in this listing - please inquire
  • Overall Dimensions: 40.75" W x 40.75" H x 34" D
  • Ship Weight: 270 Lbs
  • 2 Year Warranty (Includes Parts & Labor)
  • Made in the USA
