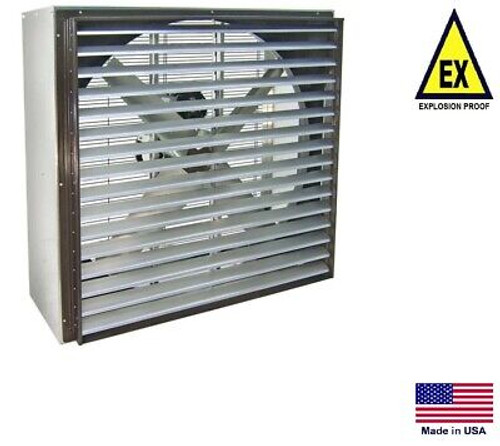

EXHAUST FAN Industrial - Explosion Proof - 30" - 115/230V - 1 Ph - 9840 CFM

___________________________________________________________________________________________________________

Model: VIRVIK3014HLU

Condition: New

Description: Exhaust Fan with Blade Guards and Shutter - Explosion Proof - Industrial

Features: 30" Diameter - 9,840 CFM - 115/230V - 1 Phase - 3/4 Hp Explosion Proof - Belt Drive with Automatic Belt Tensioning - Includes Shutters/Louvers and Wire Blade Guard on Rear - Polyester Powder Coated Rolled Inlet Venturi - Heavy Duty Galvanized Housing - Made in the USA

Payment Options: We Accept all Major Credit Cards, Personal & Business Checks, ACH Payments, Bank Wire Transfers

Shipping: Free Shipping within the Lower 48 United States.  We also Ship Worldwide via Air, Ocean and Common Carrier.  Contact us for a Freight Quote

Discounts: We Offer Multiple Item Purchase Discounts - Please Inquire

______________________________________________________________________________________________________

SEE OUR FULL LINE OF FANS, COOLERS, BLOWERS AND ACCESSORIES IN OUR EBAY STORE BY CLICKING THE "VISIT STORE" LINK ABOVE UNDER SELLER INFORMATION

Questions?  Click the "Contact Seller" Link Above (under Seller Information) or Find us on the Web at Streamline Industrial a VirTau Company

Description & Specifications:

• Industrial Heavy Duty Explosion Proof Exhaust Fan with Shutters/Louvers and Wire Blade Guard on Rear
• Heavy duty design provides continuous operation capability in industrial, commercial and institutional applications, manufacturing and assembly facilities, factories, warehouses, gymnasiums, greenhouses, workshops, barns and similar
• Features: All of our fans and optional equipment are tested and certified under actual operating conditions, heavy duty galvanized construction with polyester powder coated rolled inlet venturi for efficient air flow and corrosion resistance in harsh atmospheres, made in the USA
• Fan Type: Exhaust - Explosion Proof - Industrial/Commercial
• Drive System: Belt (with automatic belt tensioning)
• Blade Diameter: 30"
• Motor: 3/4 Hp
• Motor Type: Explosion Proof/Hazardous Location (Class I, Div I, Group D and Class II, Div I, Groups F & G)
• Voltage: 115/230V
• Phase: 1
• Amp Draw @ 115V: 13.8
• Amp Draw @ 230V: 6.9
• Hertz: 60
• Air Flow: 9,840 CFM
• Propeller Blades: 4
• Power Cord: N/A - this is a hardwire fan.  We recommend that a licensed and insured electrician to run power to this fan
• Shutters/Louvers: Included
• Wire Blade Guard: Included - Rear Mounted Behind Motor
• Drawing: See Photo in this Listing
• Optional Item: Model VIRRH - Rain/Weather Hood with Bird Screen - see photo in this listing - please inquire
• Optional Item: Model VIRTS - Thermostat - Available for 1 Phase Fans Through 1 Hp - see photo in this listing - please inquire
• Note: Please allow 2 weeks for delivery.  We build this fan to order
• Overall Dimensions: 34.75" W x 34.75" H x 24" D
• Ship Weight: 185 Lbs
• 2 Year Warranty (Includes Parts & Labor)
• Made in the USA
