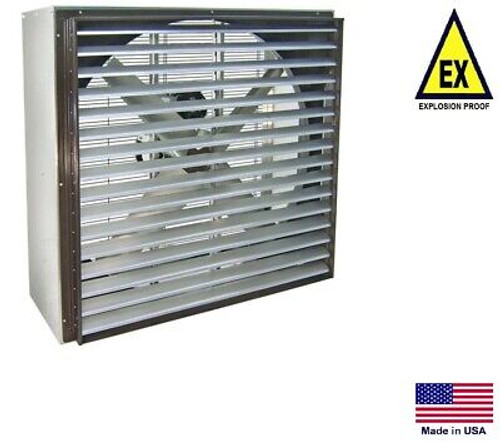

EXHAUST FAN Industrial - Explosion Proof - 42" - 208-230/460V - 3 Ph 14,600 CFM

(No reviews yet) Write a Review
$3,478.77
SKU:
RVIRVIK4214HLX
*WE OFFER FREE SHIPPING TO ANYWHERE IN THE CONTIGUOUS (LOWER 48) UNITED STATES.  ALL OTHER DESTINATIONS, PLEASE CONTACT US FOR A FREIGHT QUOTE*

___________________________________________________________________________________________________________

Model: VIRVIK4214HLX

Condition: New

Description: Exhaust Fan with Blade Guards and Shutter - Explosion Proof - Industrial

Features: 42" Diameter - 14,600 CFM -  208-230/460V - 3 Phase - 3/4 Hp Explosion Proof - Belt Drive with Automatic Belt Tensioning - Includes Shutters/Louvers and Wire Blade Guard on Rear - Polyester Powder Coated Rolled Inlet Venturi - Heavy Duty Galvanized Housing - Made in the USA

Payment Options: We Accept all Major Credit Cards, Personal & Business Checks, ACH Payments, Bank Wire Transfers and Financing through PayPal Credit

Shipping: Free Shipping within the Lower 48 United States.  We also Ship Worldwide via Air, Ocean and Common Carrier.  Contact us for a Freight Quote

Discounts: We Offer Multiple Item Purchase Discounts - Please Inquire

______________________________________________________________________________________________________



SEE OUR FULL LINE OF FANS, COOLERS, BLOWERS AND ACCESSORIES IN OUR EBAY STORE BY CLICKING THE "VISIT STORE" LINK ABOVE UNDER SELLER INFORMATION



Questions?  Click the "Contact Seller" Link Above (under Seller Information) or Find us on the Web at Streamline Industrial a VirTau Company



This Line of Explosion Proof Industrial Exhaust Fans are Available with the Following Options and Configurations:

Size Range: 24" through 60"

Drive System: Belt Drive

Output Range: 4,190 to 43,500 CFM

Motors Speeds: 1

Voltages: 115/230V, 1 Phase and 208-230/460V, 3 Phase

Motor Types: Explosion Proof

Hertz: 60Hz

Available Accessories: Weather/Rain Hood with Bird Screen




Description & Specifications:

  • Industrial Heavy Duty Explosion Proof Exhaust Fan with Shutters/Louvers and Wire Blade Guard on Rear
  • Heavy duty design provides continuous operation capability in industrial, commercial and institutional applications, manufacturing and assembly facilities, factories, warehouses, gymnasiums, greenhouses, workshops, barns and similar
  • Features: All of our fans and optional equipment are tested and certified under actual operating conditions, heavy duty galvanized construction with polyester powder coated rolled inlet venturi for efficient air flow and corrosion resistance in harsh atmospheres, made in the USA
  • Fan Type: Exhaust - Explosion Proof - Industrial/Commercial
  • Drive System: Belt (with automatic belt tensioning)
  • Blade Diameter: 42"
  • Motor: 3/4 Hp
  • Motor Type: Explosion Proof/Hazardous Location (Class I, Div I, Group D and Class II, Div I, Groups F & G)
  • Voltage: 208-230/460V
  • Phase: 3
  • Amp Draw @ 230V: 2.8
  • Amp Draw @ 460V: 1.4
  • Hertz: 60
  • Air Flow: 14,600  CFM
  • Propeller Blades: 4
  • Power Cord: N/A - this is a hardwire fan.  We recommend that a licensed and insured electrician to run power to this fan
  • Shutters/Louvers: Included
  • Wire Blade Guard: Included - Rear Mounted Behind Motor
  • Drawing: See Photo in this Listing
  • Optional Item: Model VIRRH - Rain/Weather Hood with Bird Screen - see photo in this listing - please inquire
  • Optional Item: Model VIRTS - Thermostat - Available for 1 Phase Fans Through 1 Hp - see photo in this listing - please inquire
  • Note: Please allow 2 weeks for delivery.  We build this fan to order
  • Overall Dimensions: 46.75" W x 46.75" H x 24" D
  • Ship Weight: 235 Lbs
  • 2 Year Warranty (Includes Parts & Labor)
  • Made in the USA


*WE OFFER FREE SHIPPING TO ANYWHERE IN THE CONTIGUOUS (LOWER 48) UNITED STATES.  ALL OTHER DESTINATIONS, PLEASE CONTACT US FOR A FREIGHT QUOTE*
