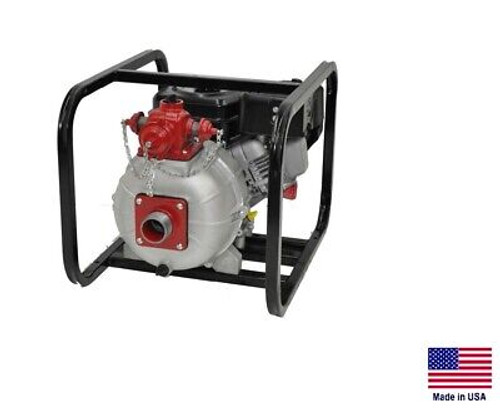

FIRE PUMP / High Pressure - 2" Suction, 3 Way Discharge - 13 Hp 2 Stg 8520 GPH

(No reviews yet) Write a Review
$3,761.74
SKU:
RVIR2MP13HR
*WE OFFER FREE SHIPPING TO ANYWHERE IN THE CONTIGUOUS (LOWER 48) UNITED STATES.  ALL OTHER DESTINATIONS, PLEASE CONTACT US FOR A FREIGHT QUOTE*

________________________________________________________________________________________________________________

Model: VIR2MP13HR & VIR2MPX90

Condition: New

Description: High Pressure / Fire Pump - Commercial/Industrial/Residential

Features: 8,520 GPH (142 GPM) - 137 PSI - 2 Stage - 13 Hp Honda Engine with Electric Start - 2" Suction Port - 3 Way Discharge Port - Self Priming to 20 Ft - Cast Aluminum Construction - Heavy Duty Steel Roll Cage - Optional Wheel Kit Available (see Optional Items below) - Made in the USA

Payment Options: We Accept all Major Credit Cards, Personal & Business Checks, Bank Wire Transfers and Financing through PayPal Credit

Shipping: Free Shipping within the Lower 48 United States.  We also Ship Worldwide via Air, Ocean and Common Carrier.  Contact us for a Freight Quote

Discounts: We Offer Multiple Item Purchase Discounts - Please Inquire

______________________________________________________________________________________________________


SEE OUR FULL LINE OF WATER, TRASH, SEWAGE, HIGH PRESSURE/FIRE, CHEMICAL PUMPS AND ACCESSORIES IN OUR EBAY STORE BY CLICKING THE "VISIT STORE" LINK ABOVE UNDER SELLER INFORMATION



Questions?  Click the "Contact Seller" Link Above (under Seller Information) or Find us on the Web at Streamline Industrial a VirTau Company


This series of high pressure/fire pumps are available in the following ranges:

Flow Range: 4,500 GPH (75 GPM) to 8,520 GPH (142 GPM)

Head Range: 263 Ft to 320 Ft

Pressure Range: 114 PSI to 139 PSI

Engine Horsepower Range: 5 Hp through 13 Hp (Briggs & Stratton, Honda and Hatz Diesel Engines)


Description & Specifications:

  • Commercial/Industrial/Residential Fire Suppression Pump / High Pressure Pump
  • Our commercial duty USA made fire suppression and high pressure pumps deliver unsurpassed pressure and flow for use in fire suppression and similar applications that require high pressure water delivery.  This series of pumps is widely used by fire departments, homeowners, commercial wash-down applications, AG/Sprinkler and commercial and farm irrigation applications
  • Features: Cast aluminum construction with cast iron diffusers, high efficiency 2-Stage precision cast aluminum impeller, 2" suction port with included 1.5" suction port flange kit, 3-way cast iron discharge port with included 1" and 1.5" adapters, Viton mechanical seal with silicon carbide/carbon faces, EPDM/EPR o-rings and gaskets, heavy duty steel roll cage, optional hose kits and wheel kit available (see Optional Items below)
  • Pump Type: Fire Suppression / High Pressure Water Pump - Commercial/Industrial/Residential
  • Performance Curve: See Photo in this Listing (Reference Letter "D" on Curve)
  • Flow: 8,520 GPH (142 GPM)
  • Pressure: 137 PSI
  • Engine: 13 Hp Honda GX390
  • Start Type: Electric
  • Fuel Tank Size: 1.6 Gallons
  • Run Time on Full Tank: 2.5 Hours
  • Suction Port: 2" - Includes 1.5" Suction Port Flange Kit - NPTM Threaded
  • Discharge Port: 2" - 3 Way - Includes 1" and 1.5" Adapters - NPTM Threaded
  • Solids Handling Capability: 3/8"
  • Impeller:  High Efficiency - 2 Stage - Precision Cast Aluminum
  • Seal Types: Viton® Silicon Carbide/Carbon & EPDM/EPR O Rings, Gasket & Flapper/Check Valve
  • Maximum Total Head: 316 Ft
  • Priming: Self Priming to 20 Ft with Built-In Flapper/Check Valve
  • Safety Features: Low Oil Alert
  • Maximum Operating Temperature: 200ºF
  • Includes: Roll Cage, Service Tool and Suction Strainer
  • Optional Item: Model VIRC40290 - Wheel Kit - please inquire
  • Optional Item: Hoses & Strainers - We carry a full line of pump hoses and strainers - please inquire
  • Optional Item: VIR2MP5 - Viton Seal & Gasket Repair Kit - please inquire
  • Overall Dimensions: 31" L x 22.5" W x 23.6" H
  • Ship Weight: 185 Lbs
  • 1 Year Warranty (Includes Parts & Labor)
  • Made in the USA
