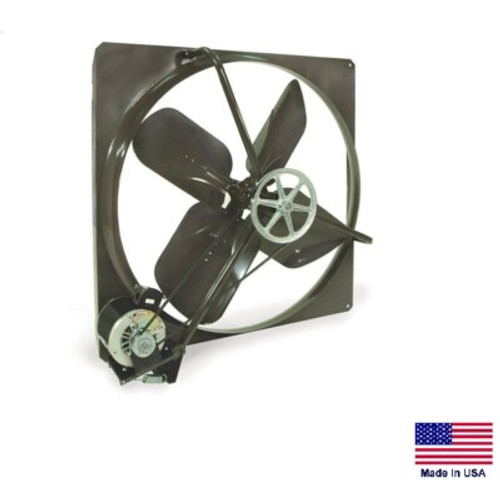

INTAKE FAN Commercial - Belt Drive - 36" - 230/460V - 3 Ph - 1/2 Hp - 10,900 CFM
- SKU:
- RVIRRV3613X
________________________________________________________________________________________________________________
Model: VIRRV3613X
Condition: New
Description: Intake Fan - Commercial/Industrial
Features: 36" Blade Diameter - 10,900 CFM - 1/2 Hp - 230/460V - 3 Phase - 1 Speed - Belt Drive - Deep Pitched Blades for Maximum Air Flow - Automatic Belt Tensioner - All Welded Construction - Powder Coat Finish - Optional Shutters/Louvers, Grill Guard and Rain Hood Available (see Optional Items below) - Made in the USA
Payment Options: We Accept all Major Credit Cards, Personal & Business Checks, Bank Wire Transfers and Financing through PayPal Credit
Shipping: Free Shipping within the Lower 48 United States. We also Ship Worldwide via Air, Ocean and Common Carrier. Contact us for a Freight Quote
Discounts: We Offer Multiple Item Purchase Discounts - Please Inquire
______________________________________________________________________________________________________
SEE OUR FULL LINE OF FANS, COOLERS, BLOWERS AND ACCESSORIES IN OUR EBAY STORE BY CLICKING THE "VISIT STORE" LINK ABOVE UNDER SELLER INFORMATION
Questions? Click the "Contact Seller" Link Above (under Seller Information) or Find us on the Web at Streamline Industrial a VirTau Company
Sizes Range: 24" through 48"
Drive System: Belt Driven Only with Automatic Belt Tensioners
Output Range: 3,920 CFM to 18,100 CFM
Description & Specifications:
- Commercial Heavy Duty Intake Fan
- Our USA made commercial/industrial intake and exhaust fans provide continuous duty operation capabilities
- Recommended for use in manufacturing facilities, assembly plants, automotive industries, barns, poultry houses, greenhouses, garages and similar settings where air movement is needed to control condensation, circulate stagnant air and provide fresh air flow
- Features: Heavy duty all welded steel construction, deep pitch blades for maximum air flow, rolled venturi for improved air flow, automatic belt tensioner, two speed motors available on models through 1/2 Hp in single phase configurations only, commercial grade polyester powder coat finish, Made in the USA
- Fan Type: Intake - Belt Driven - Commercial/Industrial
- Blade Diameter: 36"
- Drive System: Belt
- Voltage: 230/460V - TEFC
- Phase: 3
- Horsepower: 1/2
- Amp Draw @ 230V: 4.5
- Amp Draw @ 460V: 2.6
- CFM: 10,900
- Motor Speeds: 1
- Power Cord: N/A - this is a hard-wire fan
- Belt Tensioning: Automatic
- Optional Item: Model VIRES - Shutters/Louvers - 115/230V, 1 Phase (see photo in this listing) - please inquire
- Optional Item: Model VIRRH - Rain Hood (see photo in this listing) - please inquire
- Optional Item: Model VIRTS115/2301 - Thermostat - Use with 115/230V, 1 Phase Fans through 1 Hp (see photo in this listing) - please inquire
- Optional Item: Model VIRMS - Screens - Steel Mesh for Front and Rear of Fan (see photo in this listing) - please inquire
- Optional Item: Model VIRAD - Automatic Doors (see photo in this listing) - please inquire
- Optional Item: Model VIREPHL- Explosion Proof/Hazardous Location Configuration - please inquire
- Overall Dimensions: 40" W x 40" H x 16.25" D
- Please allow 2 weeks for delivery - we build this fan to order
- Ship Weight: 71 Lbs
- 1 Year Warranty (Includes Parts & Labor)
- Made in the USA
