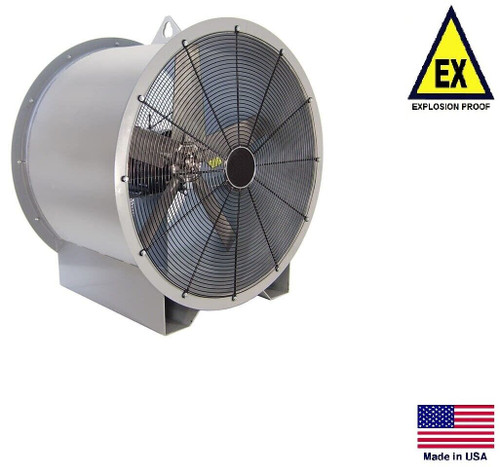

MANCOOLER BARREL FAN - Explosion Proof - 24" - 3 Hp - 230/460V - 9,810 CFM

(No reviews yet) Write a Review
$3,935.93
SKU:
RVIRMCLS2418HLX1800
MANCOOLER BARREL FAN - Explosion Proof - 24" - 3 Hp - 230/460V - 9,810 CFM
View Details
*WE OFFER FREE SHIPPING TO ANYWHERE IN THE CONTIGUOUS (LOWER 48) UNITED STATES.  ALL OTHER DESTINATIONS, PLEASE CONTACT US FOR A FREIGHT QUOTE*

___________________________________________________________________________________________________________

Model: VIRMCLS2418HLX1800

Condition: New

Description: Mancooler / Floor Fan - Explosion Proof/Hazardous Location - Commercial/Industrial

Features: 24" Diameter - Direct Drive - 3 Hp Explosion Proof - 230/460V - 3 Phase - 9,810 CFM - Heavy Duty 14 Gauge Steel Construction - Integrated Lifting Eye for Easy Mobility - Polyester Powder Coat Finish - OSHA Approved Spiral Wound Blade Guards - Spark Resistant Airfoil Aluminum Propeller Blades - Made in the USA

Payment Options: We Accept all Major Credit Cards, Personal & Business Checks, Bank Wire Transfers

Shipping: Free Shipping within the Lower 48 United States.  We also Ship Worldwide via Air, Ocean and Common Carrier.  Contact us for a Freight Quote

Discounts: We Offer Multiple Item Purchase Discounts - Please Inquire

______________________________________________________________________________________________________



SEE OUR FULL LINE OF FANS, COOLERS, BLOWERS AND ACCESSORIES IN OUR EBAY STORE BY CLICKING THE "VISIT STORE" LINK ABOVE UNDER SELLER INFORMATION



Questions?  Click the "Contact Seller" Link Above (under Seller Information) or Find us on the Web at Streamline Industrial a VirTau Company



This Series of Mancooler Floor Fans is Available in the Following Configurations:

Mounting Configurations: Low, Medium and High Stand

Blade Diameter Range: 18" through 60"

Drive Systems: Direct Drive & Belt Drive Configurations

Air Flow Range: 2,990 CFM through 60,750 CFM

Motor Horsepower: 1/4 Hp to 15 Hp

Voltage Range: 115/230V, 1 Phase and 230/460V, 3 Phase

50 Hz & 60Hz Available on Most Models

Available Accessories Include: Misting Kit (see Optional Items below)




Description & Specifications:

  • Industrial/Commercial Heavy Duty Explosion Proof/Hazardous Location Mancooler Floor Fan
  • Our mancoolers are designed for continuous operation.  Recommended applications include manufacturing and assembly facilities, loading docks, welding booths, personnel cooling, equipment cooling, steel mills, mining operations, tunnel maintenance, oil rigs, livestock barns, workshops, poultry houses and similar
  • Features: All of our fans and optional equipment have been tested and certified under actual operating conditions, heavy duty 14 gauge steel construction, polyester powder coat finish, OSHA approved spiral wound blade guards, airfoil aluminum propeller blades, integrated lifting eye for easy mobility, available in standard and explosion proof models, made in the USA
  • Fan Type: Floor Fan - Mancooler - Explosion Proof/Hazardous Location - Industrial/Commercial
  • Stand Type: Low Stand
  • Drive System: Direct
  • Blade Diameter: 24"
  • Motor: 3 Hp - Explosion Proof/Hazardous Location (Class I, Div I, Group D and Class II, Div I, Groups F & G)
  • Voltage: 230/460V
  • Phase: 3
  • Amp Draw @ 230V: 9.6
  • Amp Draw @ 460V: 4.8
  • Hertz: 60
  • Air Flow: 9,810 CFM
  • RPM: 1,750
  • Barrel Construction: 14 Gauge Steel
  • Propeller Construction: Spark Resistant Air Foil Aluminum
  • Propeller Blades: 5
  • Finish: Polyester Powder Coat
  • Power Cord: N/A - this is a hardwire fan - we recommend a licensed and insured electrician to run power to this fan
  • Lifting Eye: Integrated
  • Drawing Available on Request
  • Optional Item: Model VIRMK - Misting Kit - 50 microdroplets, easy to install, replaceable inline filter, uses 10-12 gallons per hour, connects to standard garden hose, inline on/off valve - see photo in this listing (please inquire)
  • Please allow 14 to 21 days for delivery, we build this fan to order
  • Overall Dimensions: 27-1/8" L x 20" W x 28-1/8" H
  • 1 Year Warranty (Includes Parts & Labor)
  • Made in the USA
