Model: VIRFHI3615HLXBD
Condition: New

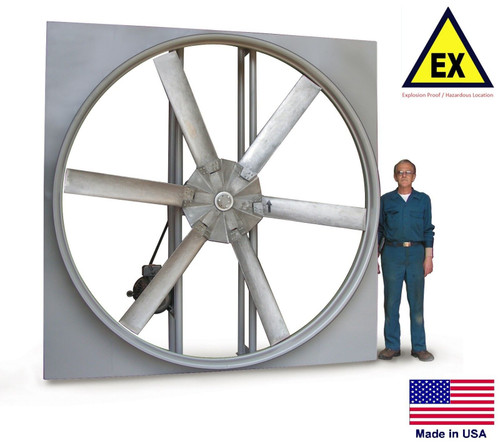

Description: Panel Axial Exhaust Fan - Explosion Proof - Commercial/Industrial
Payment Options: We Accept all Major Credit Cards, Personal & Business Checks, Bank Wire Transfers and Financing Through PayPal Credit
Shipping: We Ship Worldwide via Air, Ocean and Common Carrier. Contact us for a Freight Quote if Shipment is going Outside of the Lower 48 United States
Discounting: We offer Multiple Item Purchase Discounts - Please Inquire
______________________________________________________________________________________________________
SEE OUR FULL LINE OF PANEL AXIAL EXHAUST FANS IN OUR EBAY STORE. CLICK THE "VISIT STORE" LINK ABOVE
THIS LINE OF INDUSTRIAL EXPLOSION PROOF PANEL AXIAL EXHAUST FANS IS AVAILABLE WITH THE FOLLOWING CONFIGURATIONS:
Sizes Range: 24" to 96"
Motors Horsepower: 1/2 Hp to 25 Hp
Voltages: 115/230V, 1 Phase, & 230/460V, 3 Phase
CFM Ranges from 6,031 to 150,000 Propeller: 4 Blades on 24" through 36" Models, 6 Blades on 42" through 96" Models
This series of panel axial fans is also available in standard intake and exhaust configurations - please inquire
Questions? Click the "Contact Seller" Link Above (under Seller Information) or Find us on the Web at Streamline Industrial a VirTau Company
Description & Specifications:
- Industrial/Commercial Heavy Duty Explosion Proof/Hazardous Location Panel Axial Exhaust Fan
- Our line of Industrial/Commercial Panel Axial Intake and Exhaust Fans are designed for continuous operation
- Recommended for use in manufacturing facilities, assembly plants, automotive industries, barns, poultry houses, greenhouses, garages and similar applications
- Features: Explosion proof motor and static-free V belt - Non-overloading air foil spark resistant cast aluminum fan blades, totally enclosed fan cooled motor, heavy duty all welded structural frame, heavy duty self aligning ball bearing pillow blocks, heavy duty V belt drive with cast iron sheaves, variable speed motor sheaves optional, adjustable motor mount allows for easy belt adjustment, optional positioning jacks available, coated with a polyester powder coat paint system for long life and superior corrosion resistance, Made in the USA
- Manufactured with heavy duty steel components and industrial/commercial duty cast aluminium blades
- Fan Type: Panel Axial - Exhaust - Explosion Proof/Hazardous Location - Industrial/Commercial
- Recommended Application: Moist or Dry Environments up to 120ºF (for applications that exceed 120ºF, please inquire about our high temperature units)
- Blade Diameter: 36"
- Drive System: Belt Drive
- Horsepower: 1 Hp
- Voltage: 230/460V
- Phase: 3
- CFM: 13,617
- Motor Speeds: 1
- Motor Type: Explosion Proof
- Belt Type: V-Belt - Static Free
- Fan Blades: Cast Aluminum - Air Foil - Spark Resistant
- Propeller Blades: 4 Blades on 24" through 36" Models, 6 Blades on 42" through 96" Models (see photos of both configurations in this listing)
- Power Cord: N/A - This is a hard wire fan. We recommend a licensed and insured electrician to run power to this fan
- Optional Item: Model VIRIS - Intake Shutter (when ordered as an intake fan) - Please Inquire
- Optional Item: Model VIRMB - Mounting Box (for in-wall installations) - Please Inquire
- Optional Item: Model VIRES - Exhaust Shutter (when using fan for exhaust applications)
- Optional Item: Model WMS - Wire Mesh Screen (attaches to mounting box and protects fan from birds, rodents and similar) - please inquire
- Please allow 21 to 30 days for delivery - we build this fan to order
- 1 Year Warranty (Includes Parts & Labor)
- Made in the USA
