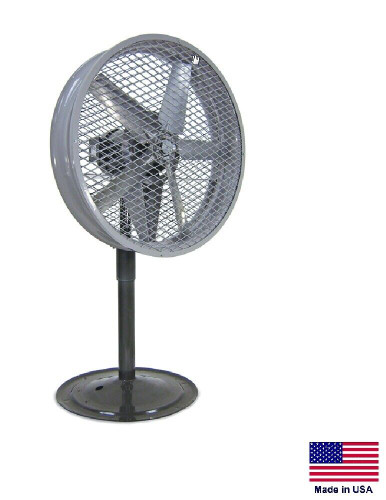

PEDESTAL FAN - Industrial - 24" - 3/4 Hp - 230/460V - 3 Phase - 6,579 CFM
- SKU:
- RVIRTP2414TXOG1200
___________________________________________________________________________________________________________
Model: VIRTP2414TXOG1200/VIRPOLE2430-6FT
Condition: New
Description: Pedestal Fan - Industrial/Commercial
Features: 24" Diameter - Direct Drive - 3/4 Hp TEFC - 230/460V - 3 Phase - 6,579 CFM - Heavy Duty Steel Construction with Polyester Powder Coat Finish - OSHA Compliant Blade Guards on Front and Back - Air Foil Cast Aluminum Fan Blades - Made in the USA
Payment Options: We Accept all Major Credit Cards, Personal & Business Checks, Bank Wire Transfers and Financing through PayPal Credit
Shipping: Free Shipping within the Lower 48 United States. We also Ship Worldwide via Air, Ocean and Common Carrier. Contact us for a Freight Quote
Discounts: We Offer Multiple Item Purchase Discounts - Please Inquire
______________________________________________________________________________________________________
SEE OUR FULL LINE OF FANS, COOLERS, BLOWERS AND ACCESSORIES IN OUR EBAY STORE BY CLICKING THE "VISIT STORE" LINK ABOVE UNDER SELLER INFORMATION
Questions? Click the "Contact Seller" Link Above (under Seller Information) or Find us on the Web at Streamline Industrial a VirTau Company
Size Range: from 24" through 42"
Drive System: Direct
Output Range: 5,420 CFM to 29,650 CFM
Description & Specifications:
-
Industrial/Commercial Heavy Duty High Velocity Pedestal Fan
-
Heavy duty design provides continuous operation in commercial and industrial applications, manufacturing and assembly workshops, barns, poultry houses, dairy barns, warehouses, furnace rooms, welding booths, storage and drying rooms, spot cooling, stock yards, barns, cotton gins, saw mills, shipyards, drilling rigs and similar
-
Features: All of our fans and optional equipment have been tested and certified under actual operating conditions, heavy duty steel construction with polyester powder coat finish for corrosion resistance in harsh atmospheres, OSHA compliant blade guards on intake and exhaust
- Fan Type: Pedestal - High Velocity Air Circulator - Industrial/Commercial
- Drive System: Direct
- Blade Diameter: 24"
- Motor: 3/4 Hp - TEFC
- Voltage: 230/460V
- Phase: 3
- Amp Draw @ 230V: 2.8
- Amp Draw @ 460V: 1.4
- Hertz: 60
- RPM: 1,140
- Air Flow: 6.579 CFM
- Propeller Blades: 5 - Air Foil Cast Aluminum
- Construction: Steel - All-Welded
- Finish: Polyester Powder Coat
- Mounting Pole/Base: Included - 72" (6 Ft) with 30" Diameter Base (optional 10 Ft pole available - see Optional Items below)
- Power Cord: N/A - this is a hard-wire fan
- Optional Item: Model VIRMK - Misting Kit (see photo in this listing) - please inquire
- Optional Item: Model VIRPOLE2430-10FT - Pole for Pedestal Mount - 120" (10 Ft) - please inquire
- Optional Item: Model VIRWMBTP - Wall Mount Bracket - please inquire
- Please allow 2 weeks for delivery, we build this fan to order
- Overall Dimensions: 28" H x 28" W x 18" D (height is head only and does not including pedestal base and pole - see drawing in this listing)
- 1 Year Warranty (Includes Parts & Labor)
- Made in the USA
