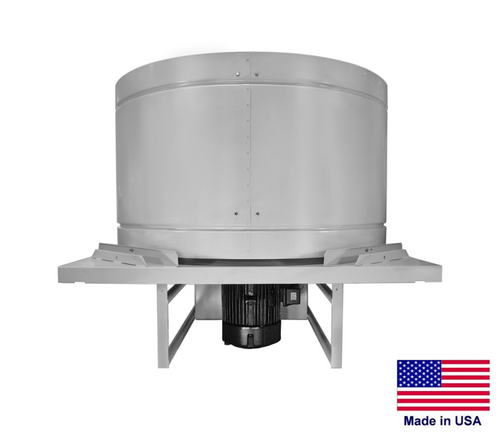

ROOF VENTILATOR EXHAUST FAN - Direct Drive - 24" - 230/460V - 1 Hp - 7610 CFM

*WE OFFER FREE SHIPPING TO ANYWHERE IN THE CONTIGUOUS (LOWER 48) UNITED STATES.  ALL OTHER DESTINATIONS, PLEASE CONTACT US FOR A FREIGHT QUOTE*

________________________________________________________________________________________________________________

Model: WAJD2415TX1200

Condition: New

Description: Roof Ventilator Exhaust Fan - Direct Drive - Commercial/Industrial

Payment Options: We Accept all Major Credit Cards, Personal & Business Checks, Bank Wire Transfers and Financing Through PayPal Credit

Shipping: We Ship Worldwide via Air, Ocean and Common Carrier.  Contact us for a Freight Quote if Shipment is going Outside of the Lower 48 United States

Discounting: We offer Multiple Item Purchase Discounts - Please Inquire

______________________________________________________________________________________________________

SEE OUR FULL LINE OF ROOF VENTILATOR EXHAUST FANS BY FOLLOWING THIS LINK: OUR ROOF VENTILATOR EXHAUST FAN LINE

THIS LINE OF INDUSTRIAL ROOF VENTILATOR EXHAUST FANS IS AVAILABLE WITH THE FOLLOWING OPTIONAL CONFIGURATIONS:

Description & Specifications:

• Industrial/Commercial Heavy Duty Roof Ventilator Exhaust Fan
• Our line of Industrial/Commercial Roof Ventilator Exhaust Fans are designed for continuous operation
• Designed for applications including paint booth exhaust, chemical fume exhaust, dust particles and air circulation involving higher static pressures and CFM requirements
• Recommended for use in manufacturing facilities, assembly plants, automotive industries, barns, poultry houses, greenhouses, garages and similar settings that require the motor and drive components to be located inside the air stream
• Features: Cast aluminum spark resistant fan blades, totally enclosed fan cooled motor, galvanized wind band provides protection from weather, aluminium damper lids open and close automatically, rain channel directs rain outside of fan and onto roof, welded steel structural frame for added support with less vibration, polyester powder coat for long life and superior corrosion resistance, taper lock bushing between propeller and shaft for ease of removal, deep spun venturi-type orifice for quieter and more efficient operation, Made in the USA
• Manufactured with heavy duty steel components and industrial/commercial duty cast aluminium blades
• Fan Type: Roof Ventilator - Exhaust - Direct Drive - Industrial/Commercial
• Recommended Application: Dry Environments up to 110ºF (for applications that exceed 110ºF, please inquire about our high temperature units)
• Blade Diameter: 24"
• Drive System: Direct Drive
• Horsepower: 1 Hp
• Voltage: 230/460V
• Phase: 3
• CFM: 7,610
• Number of Blades: 4
• RPM: 1200
• Motor Speeds: 1
• Motor Type: TEFC
• Damper: Aluminium Damper lids Open and Close Automatically
• Fan Blades: Cast Aluminum - Spark Resistant
• Power Cord: N/A - This is a hard wire fan.  We recommend a licensed and insured electrician to run power to this fan
• Please allow 21 to 30 days for delivery - we build this roof ventilator to order
• 1 Year Warranty (Includes Parts & Labor)
• Made in the USA
