Model: VIRJD3615HLU1200
Condition: New

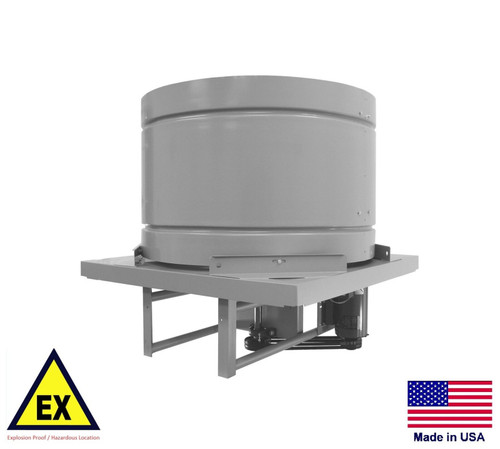

Description: Roof Ventilator Exhaust Fan - Direct Drive - Explosion Proof - Commercial/Industrial
Payment Options: We Accept all Major Credit Cards, Personal & Business Checks, Bank Wire Transfers and Financing Through PayPal Credit
Shipping: We Ship Worldwide via Air, Ocean and Common Carrier. Contact us for a Freight Quote if Shipment is going Outside of the Lower 48 United States
Discounting: We offer Multiple Item Purchase Discounts - Please Inquire
______________________________________________________________________________________________________
SEE OUR FULL LINE OF EXPLOSION PROOF ROOF VENTILATOR FANS IN OUR EBAY STORE BY CLICKING THE "VISIT STORE" LINK ABOVE
THIS LINE OF INDUSTRIAL EXPLOSION PROOF ROOF VENTILATOR FANS IS AVAILABLE WITH THE FOLLOWING OPTIONAL CONFIGURATIONS:
Sizes Range: 24" to 60"
Motors Horsepowers: 1/2 Hp to 10 Hp
Voltages: 115/230V, 1 Phase & 230/460V, 3 Phase
CFM Ranges from 5,400 to 57,483
This series of roof ventilator exhaust fans is also available in an intake configuration as well as standard exhaust (non-explosion proof) - please inquire
Questions? Click the "Contact Seller" Link Above or Give us a Call Toll Free at 8887180706
Description & Specifications:
- Industrial/Commercial Heavy Duty Explosion Proof Roof Ventilator Exhaust Fan
- Our line of Industrial/Commercial Roof Ventilator Exhaust Fans are designed for continuous operation
- Designed for applications including paint booth exhaust, chemical fume exhaust, dust particles and air circulation involving higher static pressures and CFM requirements
- Recommended for use in manufacturing facilities, assembly plants, automotive industries, barns, poultry houses, greenhouses, garages and similar settings
- Features: Explosion proof motor, cast aluminum spark resistant fan blades, galvanized wind band provides protection from weather, aluminium damper lids open and close automatically, rain channel directs rain outside of fan and onto roof, welded steel structural frame for added support with less vibration, polyester powder coat for long life and superior corrosion resistance, taper lock bushing between propeller and shaft for ease of removal, deep spun venturi-type orifice for quieter and more efficient operation, Made in the USA
- Manufactured with heavy duty steel components and industrial/commercial duty cast aluminium blades
- Fan Type: Roof Ventilator - Exhaust - Direct Drive - Explosion Proof - Industrial/Commercial
- Recommended Application: Dry Environments up to 110ºF (for applications that exceed 110ºF, please inquire about our high temperature units)
- Blade Diameter: 36"
- Drive System: Direct Drive
- Horsepower: 1 Hp
- Voltage: 115/230V
- Phase: 1
- CFM: 15,046
- Propeller Blades: 4 Blades on 24" through 36" Models, 6 Blades on 42" through 60" Models
- Propeller Blade Construction: Cast Aluminum - Spark Resistant
- Motor Speeds: 1
- Motor Type: Explosion Proof
- Damper: Aluminium Damper lids Open and Close Automatically
- Power Cord: N/A - This is a hard wire fan. We recommend a licensed and insured electrician to run power to this fan
- Please allow 21 to 30 days for delivery - we build this roof ventilator to order
- 1 Year Warranty (Includes Parts & Labor)
- Made in the USA
