Model: VIRTAB3617TX
Condition: New

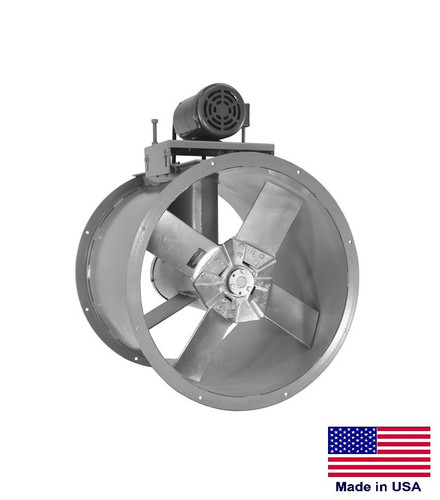

Description: Tube Axial Duct Fan - Commercial/Industrial
Payment Options: We Accept all Major Credit Cards, Personal & Business Checks, Bank Wire Transfers and Financing Through PayPal Credit
Shipping: We Ship Worldwide via Air, Ocean and Common Carrier. Contact us for a Freight Quote if Shipment is going Outside of the Lower 48 United States
Discounting: We offer Multiple Item Purchase Discounts - Please Inquire
______________________________________________________________________________________________________
SEE OUR FULL LINE OF TUBE AND VANE AXIAL FANS BY CLICKING THE "VISIT STORE" LINK ABOVE
THIS LINE OF INDUSTRIAL TUBE AXIAL EXHAUST FANS IS AVAILABLE WITH THE FOLLOWING OPTIONAL CONFIGURATIONS:
Sizes Range: 20" to 48"
Motors Horsepower: 1/4 Hp to 10 Hp
Voltages: 115/230V, 1 Phase, & 230/460V, 3 Phase
CFM Ranges from 5,045 to 43,736
This series of tube axial fans is also available in an intake configuration as well as an explosion proof/hazardous location configuration - please inquire
Questions? Click the "Contact Seller" Link Above or Give us a Call Toll Free at 8887180706
Description & Specifications:
- Industrial/Commercial Heavy Duty Tube Axial Duct Fan
- Our line of Industrial/Commercial Tube Axial Intake and Exhaust Fans are designed for continuous operation
- Recommended for use in manufacturing facilities, assembly plants, automotive industries, barns, poultry houses, greenhouses, garages and similar settings where higher static pressure is required and the motor and drive components need to be located outside the air stream
- Features: Cast aluminum spark resistant fan blades, totally enclosed fan cooled motor, motor mount with jack screws for easy belt tensioning, extended lubrication lines are standard for ease of maintenance lubrication, welded steel housing construction, guide vanes prevent deflection for improved performance, polyester powder coat paint system for long life and superior corrosion resistance, Made in the USA
- Manufactured with heavy duty steel components and industrial/commercial duty cast aluminium blades
- Belt, motor and bearings are isolated from the air stream to keep contaminated air or vapors from damaging the fans drive system
- Fan Type: Tube Axial - Exhaust - Industrial/Commercial
- Recommended Application: Moist or Dry Environments up to 120ºF (for applications that exceed 120ºF, please inquire about our high temperature units)
- Blade Diameter: 36"
- Drive System: Belt Drive
- Horsepower: 2 Hp
- Voltage: 230/460V
- Phase: 3
- CFM: 18,361
- Motor Speeds: 1
- Motor Type: TEFC
- Fan Blades: Cast Aluminum - Spark Resistant
- Power Cord: N/A - This is a hard wire fan. We recommend a licensed and insured electrician to run power to this fan
- Please allow 21 to 30 days for delivery - we build this fan to order
- 1 Year Warranty (Includes Parts & Labor)
- Made in the USA
