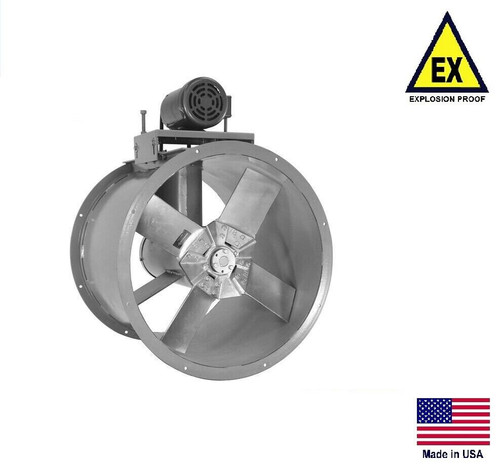

TUBE AXIAL DUCT FAN - Explosion Proof - 48" - 230/460V - 7.5 Hp - 39,698 CFM

(No reviews yet) Write a Review
$11,809.00
SKU:
RVIRTAB481AHLX
TUBE AXIAL DUCT FAN - Explosion Proof - 48" - 230/460V - 7.5 Hp - 39,698 CFM
View Details
*WE OFFER FREE SHIPPING TO ANYWHERE IN THE CONTIGUOUS (LOWER 48) UNITED STATES.  ALL OTHER DESTINATIONS, PLEASE CONTACT US FOR A FREIGHT QUOTE*

________________________________________________________________________________________________________________

Model: VIRTAB481AHLX

Condition: New

Description: Tube Axial Duct Fan - Explosion Proof - Commercial/Industrial

Payment Options: We Accept all Major Credit Cards, Personal & Business Checks, Bank Wire Transfers

Shipping: Free Shipping within the Lower 48 United States.  We also Ship Worldwide via Air, Ocean and Common Carrier.  Contact us for a Freight Quote

Discounts: We Offer Multiple Item Purchase Discounts - Please Inquire

______________________________________________________________________________________________________



SEE OUR FULL LINE OF FANS, COOLERS, BLOWERS AND ACCESSORIES IN OUR EBAY STORE BY CLICKING THE "VISIT STORE" LINK ABOVE UNDER SELLER INFORMATION



Questions?  Click the "Contact Seller" Link Above (under Seller Information) or Find us on the Web at Streamline Industrial a VirTau Company



THIS LINE OF INDUSTRIAL TUBE AXIAL EXHAUST FANS IS AVAILABLE WITH THE FOLLOWING OPTIONAL CONFIGURATIONS:

Sizes Range: 20" to 48"

Motors Horsepower: 1/4 Hp to 10 Hp

Voltages: 115/230V, 1 Phase, & 230/460V, 3 Phase

CFM Ranges from 5,045 to 43,736



This series of tube axial fans is also available in an intake configuration as well as an explosion proof/hazardous location configuration - please inquire



Description & Specifications:

  • Industrial/Commercial Heavy Duty Explosion Proof Tube Axial Duct Fan
  • Our line of Industrial/Commercial Tube Axial Intake and Exhaust Fans are designed for continuous operation
  • Recommended for use in manufacturing facilities, assembly plants, automotive industries, barns, poultry houses, greenhouses, garages and similar settings where higher static pressure is required and the motor and drive components need to be located outside the air stream
  • Features: Cast aluminum spark resistant fan blades, totally enclosed fan cooled motor, motor mount with jack screws for easy belt tensioning, extended lubrication lines are standard for ease of maintenance lubrication, welded steel housing construction, guide vanes prevent deflection for improved performance, polyester powder coat paint system for long life and superior corrosion resistance, Made in the USA
  • Manufactured with heavy duty steel components and industrial/commercial duty cast aluminium blades
  • Belt, motor and bearings are isolated from the air stream to keep contaminated air or vapors from damaging the fans drive system
  • Fan Type: Tube Axial - Exhaust - Explosion Proof - Industrial/Commercial
  • Recommended Application: Moist or Dry Environments up to 120ºF (for applications that exceed 120ºF, please inquire about our high temperature units)
  • Blade Diameter: 48"
  • Drive System: Belt Drive
  • Horsepower: 7.5 Hp
  • Voltage: 230/460V
  • Phase: 3
  • CFM: 39,698
  • Motor Speeds: 1
  • Motor Type: Explosion Proof
  • Fan Blades: Cast Aluminum - Spark Resistant
  • Power Cord: N/A - This is a hard wire fan.  We recommend a licensed and insured electrician to run power to this fan
  • Please allow 14 to 21 days for delivery - we build this fan to order
  • 1 Year Warranty (Includes Parts & Labor)
  • Made in the USA
