Model: VIRWBB59758
Condition: New

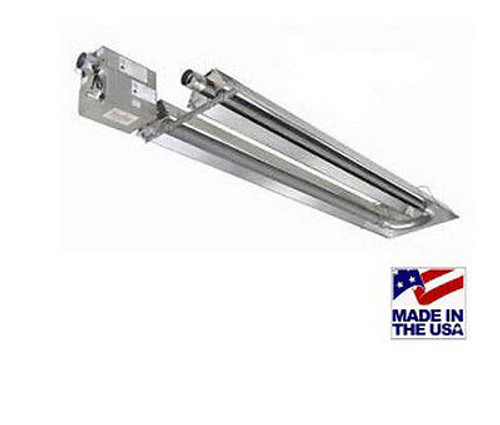

Description: U-Tube Infrared Heater - Industrial/Commercial
Features: 125,000 BTU - LP Propane Fired - 30 Ft Tube (Overall Length: 17.75 Ft) - Infrared - Aluminized Steel Combustion Chamber - Totally Enclosed Combustion Chamber- Direct or Indirect Vented Operation - CSA Certified, UL Listed - Made in the USA
Payment Options: We Accept all Major Credit Cards, Personal & Business Checks, Bank Wire Transfers and Financing through PayPal Credit and Capital Finance through
Shipping: We Ship Worldwide via Air, Ocean and Common Carrier. Contact us for a Freight Quote
Discounts: We Offer Multiple Item Purchase Discounts - Please Inquire
______________________________________________________________________________________________________
SEE OUR FULL LINE OF NATURAL GAS HEATERS BY FOLLOWING THIS LINK: OUR NATURAL GAS HEATER LINE
This series of commercial/industrial u-tube type infrared heaters is available in 40,000 BTU to 200,000 BTU configurations. Available in both Natural Gas and LP Propane setups. Tube length ranges from 20 Ft to 70 Ft
Questions? Give our Customer Service Department a Call
Description & Specifications:
- Industrial/Commercial LP Propane Fired U-Tube Infrared Heater - 125,000 BTU - 30 Ft Long Tube (17.75 Ft Overall Length of heater)
- Our USA made infrared u-tube heaters provide efficient uniform radiant energy distribution. U-tube heaters are recommended for high heat loss areas including loading docks and commercial/industrial buildings where doors are constantly open
- Reliable direct spark ignition and 100% gas shut-off safety control
- Up to 40 Ft of ducting-in fresh air and 40 Ft sidewall venting capability
- Vacuum system features a totally enclosed combustion chamber
- Commercial grade combustion chamber features a blower motor in the burner box which provides quiet operation. Heavy duty permanently lubricated ball bearing motor for maintenance free operation
- Highly efficient aluminum reflectors
- Includes diaphragm air switch, heavy duty cast iron burner and burner inspection site glass and diagnostic monitoring light system
- Aluminized steel combustion chamber makes our line of u-tube heaters ideal for corrosive environments
- Heater Type: Infrared - Positive Pressure - U-Tube - Commercial/Industrial
- Fuel Requirement: Propane (LP)
- BTU Rating: 125,000
- Current Rating: 120V, 60 Hz, 1 Phase, 1.74 Amps
- Length of Tubes in Assembled U-Tube Configuration: 30 Ft
- Overall Length of Heater: 17.75 Ft
- Venting: Direct or indirect venting. 40 Ft sidewall venting or 40 Ft outside air combustion capability
- Ignition: Direct spark
- Safety Controls: 100% gas shut off
- Clearance to Combustibles - Side: 28"
- Clearance to Combustibles - Ceiling: 6"
- Clearance to Combustibles - Below: 76"
- Clearance to Combustibles - End: 15"
- Mounting: Horizontal or angle mounting up to 45º
- Clearance to Combustibles Mounted at 45º: Front: 66" / Rear: 12"
- Gas Pipe Connection: 1/2" MPT male
- Tube Diameter: 4"
- Flue Connection: 4" Round
- Fresh Air Connection: 4" Round
- Includes 36" stainless steel flexible gas connector
- Optional thermostats available - see Optional Items below
- Certifications & Approvals: CSA Design Certified - UL Listed - ANSI Z83.20 Compliant
- Optional Item: Model VIR109165 - Line Pressure Regulator - Heavy duty, corrosion-resistant construction. Equipped with vent-limiting device. Does not require venting -
- Optional Item: Model VIR109168 - 4" Sidewall or Roof Venting Cap - Can be used in sidewall or through-the-roof venting systems -
- Optional Item: Model VIR109169 - 4" Combustion Air Cap - Used for combustion air or freish air duct termination. Aluminum construction. Fits Type B or single wall flue pipe -
- Optional Item: Model VIR108118 - 120/240V - Programmable Digital Line Voltage Thermostat - Features separate programs for weekdays and weekends with up to 4 settings per day. This is a hardwire thermostat -
- Optional Item: Model VIR28795 - 4" Vertical Venting Kit - for direct venting of combustion by-products. Includes three 24" pipe lengths, one 12" "L" pipe length, increaser, roof flashing, storm collar, roof cap, 90º elbow and draft hood connector. Additional lengths of pipe available -
- Optional Item: Model VIR29794 - 4" Horizontal Venting Kit - for direct venting of combustion by-products. Includes three 24" pipe lengths, one 12" straight pipe, one appliance adapter, one horiztonal termination cap, one wall thimble, two 45º elbows and draft hood connector. Additional lengths of pipe available -
- Please allow 2 weeks for delivery - this heater is built to order
- Overall Dimensions: 213" L x 31" W x 6.25" H
- Weight: 149 Lbs
- 1 Year Warranty (Includes Parts & Labor)
- Made in the U.S.A.
