VENTING CHIMNEY KIT for Coml & Ind High BTU Heaters - 8" Pipe - Thru Roof Instl

*WE OFFER FREE SHIPPING TO ANYWHERE IN THE CONTIGUOUS (LOWER 48) UNITED STATES.  ALL OTHER DESTINATIONS, PLEASE CONTACT US FOR A FREIGHT QUOTE*

Model: VIR4894/4890

Condition: New

Description: Chimney Kit / Venting Kit - Commercial, Industrial and Residential Applicable

Features: 8" Kit - Class A Kit - For Venting Through the Roof - Double Wall Construction - Designed for use with High BTU Heaters all Fuel Types

SEE OUR FULL LINE OF VENTING/CHIMNEY KITS BY FOLLOWING THIS LINK: OUR VENTING/CHIMNEY KIT LINE

Description & Specifications:

• Commercial/Industrial/Residential Heavy Duty Chimney/Venting Kit - 8" Piping Kit (for all 8" heater flue applications) - This kit is for Through-the-Roof Exhausting Applications
• This kit is a alternative to traditional masonary chimney and is designed for installation through-the-roof
• This Commerical, Industrial and Residential rated kit provides three necessities that a firesafe chimney must do: stay cool on the outside, provide a hot draft on the inside and provide a firesafe design that protects both the chimney and the building
• This kit is designed for use with most high BTU heaters and appliances that are tested and listed for continuous operation at 1,000ºF, including one hour at 1,400ºF and three 10-minute chimney fire tests at 2,100ºF
• Approved for use with Waste Oil Heaters, Liquid Propane (LP) Heaters, Natural Gas (NG) Heaters, Wood Stoves, Fireplaces and Fireplace Hearth Inserts, Furances, Boilers, Ranges, Water Heaters and Other Appliances fueled by Waste Oil, LP, NG, Wood and Oil
• This series of chimney/venting kits is the perfect solution for applications when you must penetrate the wall or the roof to exhaust your heater or appliance and a traditional masonary chimney is not an option
• This kit is a double-wall, all-fuel chimney system for Canada, and US applications.  This kit is ULC S629 approved as a 2100ºF chimney. This testing standard is considered to be the toughest residential chimney standard in the world, requiring the chimney to withstand three 10-minute chimney fires at 2100 degrees. The blanket insulation is encased between two stainless steel walls. Made of light-weight silica-ceramic, this insulation will not shrink or cause gaps, like competitors products made of mineral wool and other loose-fill. No gaps mean no hot spots to trigger fires. The 2" wall keeps the exterior cool while ensuring high temperatures inside for optimum draft. DuraPlus HTC is engineered safe with a floating inner wall of 430 stainless steel which expands lengthwise in the event of a creosote fire. The chimney will not buckle or lose structural integrity
• For use with: 8" Chimney Piping Systems
• Attaches to: 8" Heater Flues
• Construction: Class A - Double Wall

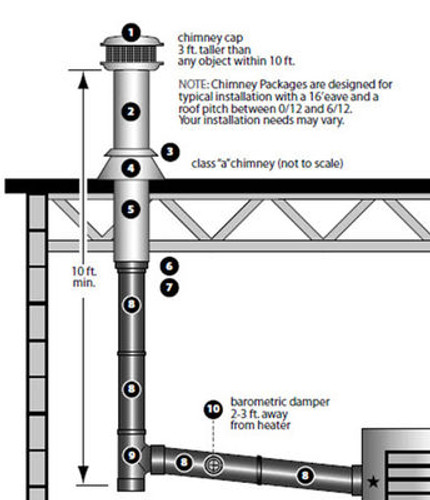

• Kit Includes: Chimney Cap (1 ea); Chimney Pipe - 24" (1 ea); Storm Collar (1 ea); Roof Flashing 0/12 - 6/12 Pitch (1 ea); Chimney Pipe - 36" (1 ea); Finishing Collar (1 ea); Slip Connector - 14" (1 ea); Black Pipe - 24" (4 ea); Black Tee with Cap (1 ea); Roof Support Bracket (1 ea).  See these components and a typical assembly in the photo provided in this listing
• Note: The components in this kit are for a typical installation.  Your application may require additional sections of piping.  Additional (optional) piping is available in 12", 24" and 36" sections - please inquire Click the "Ask a Question" Link Below
• Approvals and Listings: cUL-US and ULC-S641
• Optional Item: Model VIR0005.0005 - Barometric Damper for 8" Chimney Kit (Please Inquire Click the "Ask a Question" Link Below)
• Ship Weight: 85 Lbs
• 1 Year Warranty (Includes Parts & Labor)
• Made in the U.S.A.
