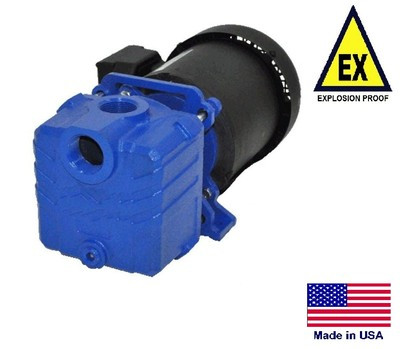

CENTRIFUGAL PUMP Explosion Proof - 4980 GPH - 1.5 Hp - 115/230V - 1.25" Ports

(No reviews yet) Write a Review
$2,369.15
SKU:
VIR285HX5




*WE OFFER FREE SHIPPING TO ANYWHERE IN THE CONTIGUOUS (LOWER 48) UNITED STATES.  ALL OTHER DESTINATIONS, PLEASE CONTACT US FOR A FREIGHT QUOTE*

________________________________________________________________________________________________________________

Model: VIR285HX5

Condition: New

Description: Centrifugal Pump - Explosion Proof / Hazardous Location - Industrial/Commercial

Features: 4980 GPH (83 GPM) - 1.5 Hp - 115/230V - 1 Phase - 5/3 Amps - 31 PSI - 1.25" NPT Threaded Suction & Discharge Ports - Self-Priming to 20 Ft - Dual Volute Design - Self-Cleaning, Semi-Open Impeller - Handles Solids up to 1/4" - Made in the USA

Payment Options: We Accept all Major Credit Cards, Personal & Business Checks, Bank Wire Transfers and Financing Through PayPal Credit and Capital Financing Through

Shipping: We Ship Worldwide via Air, Ocean and Common Carrier.  Contact us for a Freight Quote if Shipment is going Outside of the Lower 48 United States Toll Free

Discounting: We offer Multiple Item Purchase Discounts - Please Inquire Toll Free

______________________________________________________________________________________________________



SEE OUR FULL LINE OF CENTRIFUGAL PUMPS BY FOLLOWING THIS LINK: OUR CENTRIFUGAL PUMP LINE



This Series of Explosion Proof/Hazardous Location Centrifugal Pumps are Available in the Following Configurations:

Inlet/Outlet Diameters: 1" and 1.25"

Flow Rates: 3000 GPH (50 GPM) through 4980 GPH (83 GPM)

Motor Sizes: 1/3 Hp through 1.5 Hp (ODP & TEFC)

Voltages: 115/230V and 230/460V

Phase: 1 & 3

Available Options: Silicon Carbide/Viton Seal or Silicon Carbide Mechanical Seal and O Ring (factory installed).  This pump is also available in non-explosion proof configuration and in a stainless steel configuration (please inquire Toll Free at )



We carry a full line of pumps in motor and engine driven configurations as well as a full line of accessories and components throughout the year.  We stock and manufacture to order here in the USA



Questions?  Ask our Experts Toll Free at



Description & Specifications:

  • Industrial/Commercial Explosion Proof / Hazardous Location Centrifugal Pump
  • Our line of USA made industrial/commercial centrifugal pumps are designed for continuous operation and recommended for use in applications that require high volume liquid transfer, circulating, boosting, washdown, dewatering and similar applications
  • Features: Self cleaning semi-open impeller capable of handling solids up to 1/8" diameter, self-priming up to 20 Ft, dual volute design reduces radial load on motor, centerline discharge prevents vapor binding and provides easy piping connections
  • Pump Type: Centrifugal - High Volume - Explosion Proof/Hazardous Location - Industrial/Commercial
  • Motor: 1.5 Hp - Explosion Proof
  • Voltage: 115/230V
  • Phase: 1
  • Hertz: 60
  • Motor Type: Explosion Proof
  • Amp Draw @ 115V: 5
  • Amp Draw @ 230V: 3
  • Suction Port: 1.25" NPT Threaded
  • Discharge Port: 1.25" NPT Threaded
  • Flow: 4980 GPH (83 GPM)
  • PSI: 31
  • Maximum Total Head: 72 Ft
  • Construction: Cast Iron
  • Volute: Dual
  • Seal & O Ring: Buna-N
  • Impeller: Self-Cleaning / Semi-Open
  • Solids Handling Capacity: 1/4"
  • Priming: Self-Priming to 20 Ft
  • Maximum Temperature: 180ºF
  • Power Cord: N/A - this is a hardwire pump.  We recommend a licensed and insured electrician to run power to this pump
  • Note: we carry a full line of accessories including hoses, strainers, seal kits, wheel kits and more, please inquire Toll Free at
  • Optional Item: Model EPHLC - Explosion Proof/Hazardous Location Configuration - (please inquire Toll Free at
  • Optional Item: Model VIRSCVS - Silicon Carbide/Viton Seal & Viton Check Valve - Factory Installed - (please inquire Toll Free at
  • Optional Item: Model VIREPDM/EPR - EPDM/EPR Seal, O-Ring & Flapper - Factory Installed - (please inquire Toll Free at
  • Overall Dimensions: 18.3" L x 8.8" W x 8.6" H
  • Weight: 56 Lbs
  • Note: please allow up to 2 weeks for delivery as we build this pump to order
  • 1 Year Warranty (Includes Parts & Labor)
  • Made in the USA
