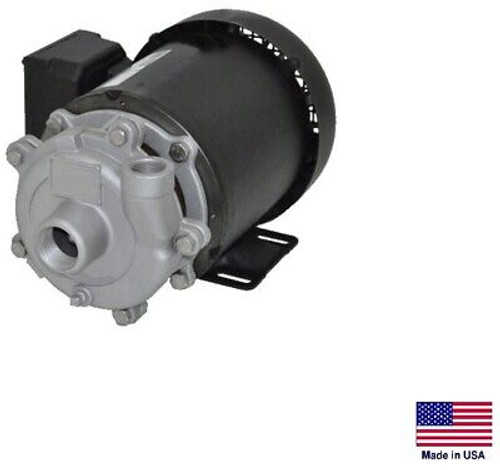

CENTRIFUGAL PUMP - Stainless Stl 1 Hp - 230/460V - 1-1/4" & 1" Ports - 4,560 GPH

(No reviews yet) Write a Review
$1,563.98
SKU:
RVIR369F98
*WE OFFER FREE SHIPPING TO ANYWHERE IN THE CONTIGUOUS (LOWER 48) UNITED STATES.  ALL OTHER DESTINATIONS, PLEASE CONTACT US FOR A FREIGHT QUOTE*

___________________________________________________________________________________________________________

Model: VIR369F98

Condition: New

Description: Centrifugal Pump - Industrial/Commercial

Features: 4,560 GPH (76 GPM) - 20.8 PSI - 1 Hp TEFC - 230/460V - 3 Phase - Single Stage - 1-1/4" NPT Suction Port / 1" NPT Discharge Port - Cast Stainless Steel Construction - Stainless Steel Impeller - Viton® Seals (optional Viton® seal and gaskets available - see Optional Items below) - Made in the USA

Payment Options: We Accept all Major Credit Cards, Personal & Business Checks, Bank Wire Transfers and Financing through PayPal Credit

Shipping: Free Shipping within the Lower 48 United States.  We also Ship Worldwide via Air, Ocean and Common Carrier.  Contact us for a Freight Quote

Discounts: We Offer Multiple Item Purchase Discounts - Please Inquire

______________________________________________________________________________________________________



SEE OUR FULL LINE OF WATER, TRASH, SEWAGE AND CHEMICAL PUMPS AND ACCESSORIES IN OUR EBAY STORE BY CLICKING THE "VISIT STORE" LINK ABOVE UNDER SELLER INFORMATION



Questions?  Click the "Contact Seller" Link Above (under Seller Information) or Find us on the Web at Streamline Industrial a VirTau Company



This Line of Industrial/Commercial Centrifugal Pumps are Available in the Following Options and Configurations:

Construction: Cast Iron, Cast Bronze and Cast Stainless Steel

Flow Range: 1,980 GPH (33 GPM) to 5,520 GPH (92 GPM)

Voltages/Phase: 115/230V, 1 Phase and 230/460V, 3 Phase

Motor Horsepower Range: 1/3 Hp to 2 Hp

Motor Types: TEFC

Suction Port Range: 3/4" to 1-1/4" NPT Threaded

Discharge Port Range: 1/2" to 1" NPT Threaded

Available Optional Items Include: Viton® Seal and Gaskets



Description & Specifications:

  • Industrial/Commercial Heavy Duty Water and Chemical Centrifugal Pump
  • Our USA made heavy duty centrifugal pumps are designed for continuous operation with no duty cycle.  Recommended circulation applications, chemical processing, dirty water and liquid transfer applications
  • Features: Heavy duty cast stainless steel construction, semi-open self-cleaning stainless steel impeller, stainless steel motor shaft and hardware, NEMA 56J TEFC motor, discharge rotates in 90º increments, front drain plug, available in cast iron, cast bronze and cast stainless steel, pull from rear design for easy service without disturbing any piping, solids handling up to 1/8" diameter, made in the USA
  • Performance Chart: See Photo in the Listing - Reference Letter "F"
  • Pump Type: Centrifugal - Industrial/Commercial
  • Application: Circulation, Chemical Processing, Dirty Water and Liquid Transfer
  • Construction: Cast Stainless Steel (also available in cast iron and cast bronze)
  • Voltage: 230/460V
  • Phase: 3
  • Horsepower: 1 Hp
  • Motor Type: TEFC - 56J (NEMA base mounted motor)
  • Full Load Amp Draw @ 230V: 4
  • Full Load Amp Draw @ 460V: 2
  • Stages: 1
  • Pressure: 20.8 PSI
  • Maximum Total Head: 48 Ft
  • Maximum Working Pressure: 75 PSI
  • Solids Handling Capacity: 1/8"
  • Flow: 4,560 GPH (76 GPM)
  • Suction Port: 1-1/4" - NPT Threaded
  • Discharge Port: 1" - NPT Threaded - Rotates 90º
  • Impeller: Stainless Steel - Semi-Open - Self Cleaning
  • Motor Shaft & Hardware: Stainless Steel
  • Maximum Temperature: 180ºF
  • Seals: Viton® (optional Viton® seals available - see Optional Items below)
  • Optional Item: Model VIR368X301VS - Silicon Carbide/Viton® Seal and O-Ring Installed (please inquire)
  • Optional Item: Model VIRA20190 - Mounting Base - for 56 Frames with Bases (please inquire)
  • Overall Dimensions: 12.4" L x 8.8" W x 7.2" H
  • Ship Weight: 43 Lbs
  • 1 Year Warranty (Includes Parts & Labor)
  • Made in the USA
