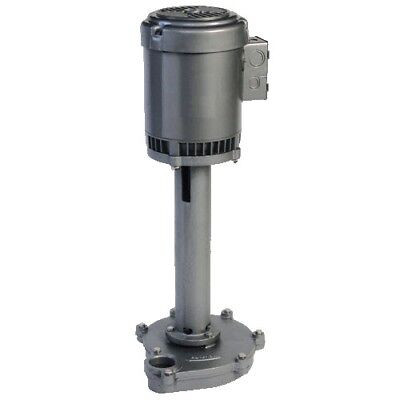

COOLANT PUMP - Self Cleaning - 1.50" - 67 GPM - 3/4 Hp - 115-208/230V - 1 Phase

(No reviews yet) Write a Review
$1,128.35
SKU:
RWA444095

*WE OFFER FREE SHIPPING TO ANYWHERE IN THE CONTIGUOUS (LOWER 48) UNITED STATES.  ALL OTHER DESTINATIONS, PLEASE CONTACT US FOR A FREIGHT QUOTE*

________________________________________________________________________________________________________________

Model: WA444095

Condition: New

Description: Coolant Pump - Self Cleaning - Industrial/Commercial

Features: 1.50" Discharge Port - 4,020 GPH (67 GPM) - 3/4 Hp - 115-208/230 Volt - 1 Phase - 9/5 Amps - 13.9 PSI - 32 Ft Head - Cast Iron Casing and Column - 200ºF Maximum Temperature - Self Cleaning - Includes Universal Mounting Bracket - Designed for a Coolant and Recirculating Applications - Semi-Open Stainless Steel Impeller - Made in the USA

Payment Options: We Accept all Major Credit Cards, Personal & Business Checks, Bank Wire Transfers and Financing Through PayPal Credit

Shipping: We Ship Worldwide via Air, Ocean and Common Carrier.  Contact us for a Freight Quote if Shipment is going Outside of the Lower 48 United States

Discounting: We offer Multiple Item Purchase Discounts - Please Inquire

______________________________________________________________________________________________________



TO VIEW SIMILAR PRODUCTS IN THIS LINE CLICK HERE



This Series of Coolant Pumps are Available in the Following Configurations:

1/3 Hp - 115-208/230V - 1 Phase - 7/4 Amps - 46 GPM - 17 Ft Head - 7.4 PSI - 1.25" Discharge

1/3 Hp - 208-230/460V - 3 Phase - 2/1 Amps - 46 GPM - 17 Ft Head - 7.4 PSI - 1.25" Discharge

1/3 Hp - 115-208/230V - 1 Phase - 7/4 Amps - 48 GPM - 22 Ft Head - 9.5 PSI - 1.25" Discharge

1/3 Hp - 208-230/460V - 3 Phase - 2/1 Amps - 48 GPM - 22 Ft Head - 9.5 PSI - 1.25" Discharge

3/4 Hp - 115-208/230V - 1 Phase - 9/5 Amps - 67 GPM - 32 Ft Head - 13.9 PSI - 1.50" Discharge

3/4 Hp - 208-230/460V - 3 Phase - 3/2 Amps - 67 GPM - 32 Ft Head - 13.9 PSI - 1.50" Discharge



We carry a full line of pumps in electric, gas and diesel engine, belt and direct drive configurations as well as a full line of accessories and components throughout the year.  All of our pumps are manufactured and factory tested before shipment here in the USA



Questions?  Click the "Contact Seller" Link Above or Give us a Call Toll Free



Description & Specifications:

  • Industrial/Commercial Heavy Duty Self Cleaning Coolant Pump
  • Our line of USA made industrial/commercial coolant pumps are designed for continuous operation and recommended for use in Cooling and Recirculating applications
  • This series of industrial/commercial coolant pumps is available with 1.25" and 1.5" discharge ports
  • Features: Self-cleaning, dual volute design to reduce radial load on motor, centerline discharge prevents vapor locking/binding and provides convenient piping connections, self-cleaning, semi-open stainless steel impeller
  • Pump Type: Coolant - Industrial/Commercial
  • Discharge Port: 1.50" NPT Threaded
  • Flow: 4,020 GPH (67 GPM)
  • Motor: 3/4 Hp - TEFC
  • Voltage: 115-208/230V
  • Phase: 1
  • Amp Draw: 9/5
  • PSI: 13.9
  • Total Head: 32 Ft
  • Maximum Temperature: 200ºF
  • Construction: Cast Iron (Casing and Column)
  • Impeller: Stainless Steel - Self-Cleaning - Semi-Open
  • Mounting Bracket: Included (Universal)
  • Power Cord: N/A - this is a hardwire pump.  We recommend a licensed and insured electrician to run power to this pump
  • Overall Dimensions: 10.7" L x 9.2" W x 20.2" H
  • Weight: 50 Lbs
  • 1 Year Warranty (Includes Parts & Labor)
  • Made in the U.S.A.
