COOLING FAN Industrial - Optional Mount - 24" - 1 Hp - 230V - 3 Ph - 5,900 CFM

(No reviews yet) Write a Review
$3,597.61
SKU:
RVIRHV2415Y
*WE OFFER FREE SHIPPING TO ANYWHERE IN THE CONTIGUOUS (LOWER 48) UNITED STATES.  ALL OTHER DESTINATIONS, PLEASE CONTACT US FOR A FREIGHT QUOTE*

___________________________________________________________________________________________________________

Model: VIRHV2415Y

Condition: New

Description: Circulation Fan - Industrial/Commercial

Features: 24" Diameter - Direct Drive - 1 Hp - 230V - 3 Phase - 5,900 CFM - Heavy Duty Polypropylene Housing - Galvanized Welded Bird Screen on Front and Back - 3 Mounting Options (Pedestal, Vertical or Horizontal) - Tiltable Head - Made in the USA

Payment Options: We Accept all Major Credit Cards, Personal & Business Checks, Bank Wire Transfers and Financing through PayPal Credit

Shipping: Free Shipping within the Lower 48 United States.  We also Ship Worldwide via Air, Ocean and Common Carrier.  Contact us for a Freight Quote

Discounts: We Offer Multiple Item Purchase Discounts - Please Inquire

______________________________________________________________________________________________________



SEE OUR FULL LINE OF FANS, COOLERS, BLOWERS AND ACCESSORIES IN OUR EBAY STORE BY CLICKING THE "VISIT STORE" LINK ABOVE UNDER SELLER INFORMATION



Questions?  Click the "Contact Seller" Link Above (under Seller Information) or Find us on the Web at Streamline Industrial a VirTau Company



This Series of Air Circulating Fans Feature the Following Options and Configurations:

Sizes Range: 24", 30" and 54"

Drive Systems: Direct Drive for 24" & 30" / Belt Drive on 54" Models

Air Flow Ranges: from 5,600 CFM to 42,500 CFM

Voltage Ranges: from 115V, 1 Phase, 230V, 1 Phase, 230V, 3 Phase and 460V, 3 Phase

50 Hz & 60Hz Available

Available Accessories Include: Mounting Systems (Pedestal, Horizontal or Vertical) and Misting Kit (see Optional Items below)




Description & Specifications:

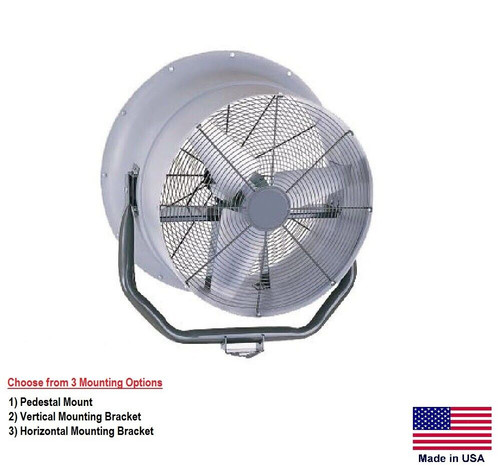

  • Industrial/Commercial Heavy Duty Circulation Fan with 3 Mounting Options (Pedestal, Horizontal or Vertical Mount), Choose a Mounting Option at Time of Order
  • Heavy duty design provides continuous operation in commercial and industrial applications, manufacturing and assembly workshops, barns, poultry houses, dairy barns, warehouses, sporting events and similar
  • Features: Moves a large concentration of air 100+ feet, all of our fans and optional equipment have been tested and certified under actual operating conditions, heavy duty polypropylene construction, galvanized welded wire guard on intake and exhaust, comes standard with grey barrel (optional green barrel available at no extra cost)
  • Fan Type: Barrel - Cooling/Circulation - Industrial/Commercial
  • Drive System: Direct
  • Blade Diameter: 24"
  • Motor: 1 Hp - TEFC
  • Voltage: 230V
  • Phase: 3
  • Amp Draw: 5.7
  • Hertz: 60
  • Motor Speeds: 1
  • Air Flow: 5,900 CFM
  • Oscillation: N/A
  • Tilting Head: Yes
  • Propeller Blades: 3
  • Barrel Color: Grey (optional green barrel available at no additional cost - see photo in this listing)
  • Power Cord: N/A - this is a hard-wire fan
  • Note: one of the following 3 mounting options is included with this fan at no extra cost.  Choose a pedestal base, vertical mounting bracket or a horizontal mounting bracket.  The pedestal base pole can be upgraded to a 72" or a 120" pole at an additional cost
  • Optional Item: Model VIRMK - Misting Kit (see photo in this listing)
  • Optional Item: Model VIRPB2430 - Pedestal Mount - Includes Pedestal Base and 45" (3.75 Ft) Pole (see photos in this listing)
  • Optional Item: Model VIRVMB2430 - Vertical Mounting Bracket (see photos in this listing)
  • Optional Item: Model VIRHMB2430 - Horizontal Mounting Bracket (see photos in this listing)
  • Optional Item: Model VIRPOLE2430-6FT - Pole for Pedestal Mount - 72" (6 Ft)
  • Optional Item: Model VIRPOLE2430-10FT - Pole for Pedestal Mount - 120" (10 Ft)
  • Please allow 2 weeks for delivery, we build this fan to order
  • Overall Dimensions: 47" H x 34" W x 23" D
  • Ship Weight: 180 Lbs
  • 1 Year Warranty (Includes Parts & Labor)
  • Made in the USA
