ELECTRIC HEATER Coml/Industrial - 208/240V - 3 Ph - 100,000 Watt - 341,300 BTU

(No reviews yet) Write a Review
$16,555.55
SKU:
RVIRWGB171925
*WE OFFER FREE SHIPPING TO ANYWHERE IN THE CONTIGUOUS (LOWER 48) UNITED STATES.  ALL OTHER DESTINATIONS, PLEASE CONTACT US FOR A FREIGHT QUOTE*

________________________________________________________________________________________________________________

Model: VIRWGB171925 / VIRWGB171928

Condition: New

Description: Electric Unit Heater - Industrial/Commercial

Features: 341,300 BTU - 100,000/75,000 Watts - 208/240V - 3 Phase - Amp Draw: 241 - Can be Installed for Horizontal or Vertical Discharge - Individually Adjustable Louvers - Commercial Grade Steel Housing - Optional Thermostats Available - UL Approved - Made in the USA

Payment Options: We Accept all Major Credit Cards, Personal & Business Checks, Bank Wire Transfers and Financing through PayPal Credit

Shipping: Free Shipping within the Lower 48 United States.  We also Ship Worldwide via Air, Ocean and Common Carrier.  Contact us for a Freight Quote

Discounts: We Offer Multiple Item Purchase Discounts - Please Inquire

______________________________________________________________________________________________________



SEE OUR FULL LINE OF HEATERS, FURNACES, BOILERS AND ACCESSORIES IN OUR EBAY STORE BY CLICKING THE "VISIT STORE" LINK ABOVE UNDER SELLER INFORMATION



Questions?  Click the "Contact Seller" Link Above (under Seller Information) or Find us on the Web at Streamline Industrial a VirTau Company



This series of commercial/industrial electric heaters are available in the following configurations:

BTU Ratings: 11,200 thru 341,300

Wattages: 3,300 thru 100,000

Voltages: 208V, 240V, 277V, 480V

Phases: 1 & 3



Description & Specifications:

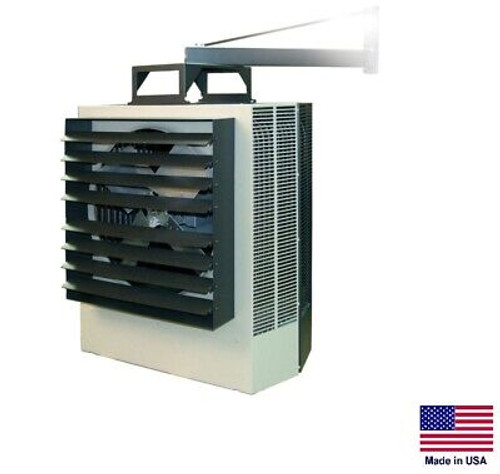

  • Industrial/Commercial Electric Unit Heater
  • Our USA made electric unit heaters are designed for most commercial industrial applications that are not considered hazardous location (see our hazardous location/explosion proof heater line).  This series of electric heaters can be used in dirty and dusty environments and in high altitudes applications up to 13,000 feet (heater performance is reduced in higher elevations).  Use as primary, supplementary or auxiliary heat source
  • Features: heavy duty 18 gauge steel housing with powder coat finish, mounts horizontally or vertically, adjustable louvers, spiral fin steel heating element with continuously brazed steel fins, built-in overheating protection, totally enclosed permanently lubricated thermally protected motor with unit bearings, UL approved, made in the USA
  • Heater Type: Electric - Fan Forced - Commercial/Industrial
  • Motor: 3/4 Hp
  • Voltage: 208/240V
  • Phase: 3
  • Wattage @ 208V: 100,000
  • Wattage @ 240V: 75,000
  • Amp Draw @ 208V: 241
  • Amp Draw @ 240V: 180.7
  • BTU Rating @ 208V: 341,300
  • BTU Rating @ 240V: 255,975
  • Air Flow: 5,000 CFM
  • FPM: 1,529
  • Air Throw: 65 Ft
  • Temperature Rise @ 208V: 68ºF
  • Temperature Rise @ 240V: 51ºF
  • Mounting & Discharge: Vertical or Horizontal
  • Thermostat: Optional (see Optional Items below)
  • Mounting Bracket: Included (see photos in this listing)
  • Housing: 18 Gauge Steel with Powder Coat Finish
  • Listings & Approvals: UL Approved
  • Ships Assembled
  • Optional Item: Model VIRWGB172010 - Single Pole Thermostat
  • Optional Item: Model VIRWGB172011 - Double Pole Thermostat
  • Optional Item: Model VIRWGB172017 - Single Pole Wall Mount Thermostat
  • Optional Item: Model VIRWGB171929 - Disconnect Switch - 3 Pole - 100 Amp - Field Installed
  • NOTE: PLEASE ALLOW 2 WEEKS FOR DELIVERY AS WE BUILD THIS HEATER TO ORDER
  • Overall Dimensions: 37.5" W x 18.5" D x 39.5" H
  • Ship Weight: Lbs
  • 5 Year Warranty on Heating Element and 1 Year Warranty on Remainder of Unit (Includes Parts & Labor)
  • Made in the USA
