EXHAUST FAN - Explosion Proof - Belt Drive - 42" - 230/460V - 1 Hp 16,000 CFM
- SKU:
- RVIRVI4215HLX
________________________________________________________________________________________________________________
Model: VIRVI4215HLX
Condition: New
Description: Exhaust Fan - Explosion Proof/Hazardous Location - Industrial
Features: 42" Blade Diameter - 230/460 Volt - 3 Phase - 1 Hp - 4/2 Amps - 16,000 CFM - Belt Drive - Hazardous Location/Explosion Proof Configuration Includes Single Speed Explosion Proof Motor and Aluminum Spark-Resistant Fan Blades - Optional Shutters (Louvers), Grill Guards and Rain Hoods Available (see Optional Items below)
Payment Options: We Accept all Major Credit Cards, Personal & Business Checks, Bank Wire Transfers and Financing through PayPal Credit
Shipping: Free Shipping Within the Lower 48 United States. We also Ship Worldwide via Air, Ocean and Common Carrier. Contact us for a Freight Quote
Discounts: We Offer Multiple Item Purchase Discounts - Please Inquire
______________________________________________________________________________________________________
SEE OUR FULL LINE OF FANS (EXHAUST AND INTAKE) IN OUR EBAY STORE BY CLICKING THE "VISIT STORE" LINK ABOVE UNDER SELLER INFORMATION
Questions? Click the "Contact Seller" Link Above or Find us on the Web at Streamline Industrial a VirTau Company
WE BUILD TO ORDER. If you can't find what you're looking for in our store, contact us with the specs that you need to meet and we'll provide you with a quote
THIS LINE OF INDUSTRIAL EXPLOSION PROOF EXHAUST FANS IS AVAILABLE IN FOLLOWING CONFIGURATIONS:
Sizes range between 24" to 60"
Motors from 1/2 to 5 Hp - Single and 2 Speed in some models
Voltage Range: 115/230V, 230/460V
Single & Three Phase
CFM Ranges from 4,190 to 43,500
All sizes of this series of exhaust fans are available in standard (non-explosion proof) configurations
All sizes of this series are available in reverse configurations for use as intake fans
Description & Specifications:

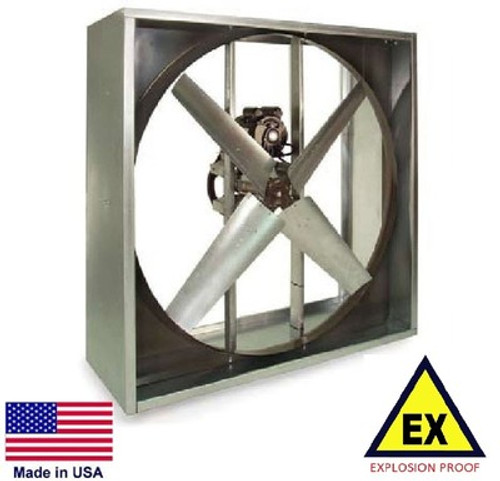

- Industrial Heavy Duty Explosion Proof/Hazardous Location 42" Exhaust Fan
- Our line of Industrial Explosion Proof/Hazardous Location Exhaust Fans provide continuous duty operation capabilities
- Recommeded for use in manufacturing facilities, assembly plants, automotive industries and similar settings where air movement is needed to remove air contaminated with materials classified as hazardous or have explosion potential and provide fresh air flow
- Features an industrial continuous duty explosion proof motor and aluminum spark-resistant blades. Note: wiring must be in accordance with local, state and national codes and be performed by a qualified electrician. We recommend a licensed and insured electrician that is fully educated on the application at the time of installation
- Fan Type: Exhaust - Explosion Proof/Hazardous Location - Industrial/Commercial
- Blade Diameter: 42"
- Drive System: Belt
- Horsepower: 1 Hp
- Motor Type: Explosion Proof/Hazardous Location (Class I, Div I, Group D and Class II, Div I, Groups F & G)
- Voltage: 230/460V
- Phase: 3
- Amp Draw @ 230V: 4
- Amp Draw @ 460V: 2
- Motor Speeds: 1
- CFM: 16,000
- Power Cord: N/A - This is a hardwire fan. We recommend that you contact a licensed and insured electrician to run power to this fan
- Optional Item: Model VIRIWS - Shutters/Louvers
- Optional Item: Model VIRVG - Grill/Guard - Mounts on Housing Behind Motor
- Optional Item: Model VIRRH - Rain Hood
- Overall Dimensions: 46.25" H x 46.25" W x 20" D
- Please allow 2 weeks for delivery - we build this fan to order
- Ship Weight: 162 Lbs
- 1 Year Warranty (Includes Parts & Labor)
- Made in the USA
