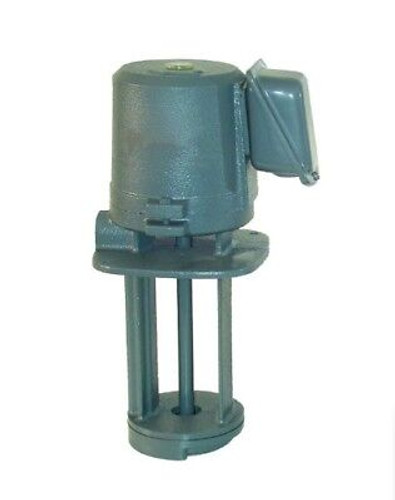

IMMERSION PUMP - 1" Port - 1 Hp - 230/460V - 3 Phase - 55 GPM - 60 Ft Head

(No reviews yet) Write a Review
$972.08
SKU:
RWA541195

*WE OFFER FREE SHIPPING TO ANYWHERE IN THE CONTIGUOUS (LOWER 48) UNITED STATES.  ALL OTHER DESTINATIONS, PLEASE CONTACT US FOR A FREIGHT QUOTE*

________________________________________________________________________________________________________________

Model: WA541195

Condition: New

Description: Immersion Pump - Industrial/Commercial

Features: 1" Intake Port - 3,300 GPH (55 GPM) - 1 Hp - 230/460 Volt - 3 Phase - 3.2/1.9 Amps - 26 PSI - 60 Ft Head - Cast Iron Construction - 180ºF Maximum Temperature - Stainless Steel Semi Open Impeller - Carbon Steel Shaft - Seal less Design - Pumps Liquids Down to 2" - UL & CSA Listed - Made in the USA

Payment Options: We Accept all Major Credit Cards, Personal & Business Checks, Bank Wire Transfers and Financing Through PayPal Credit

Shipping: We Ship Worldwide via Air, Ocean and Common Carrier.  Contact us for a Freight Quote if Shipment is going Outside of the Lower 48 United States

Discounting: We offer Multiple Item Purchase Discounts - Please Inquire

_________________________________________________________________________________________________________________



TO VIEW SIMILAR PRODUCTS IN THIS LINE CLICK HERE



This Series of Coolant Pumps are Available in the Following Configurations:

Port Range: 3/8" - 1" Ports

Horsepower Range: 1/8 - 3/4 Hp

Voltage Range: 115/230V - 230/460V

Phase Range: 1 Ph & 3 Ph

Flow Range: 10 - 55 GPM

Pressure Range: 6.5 - 26 PSI



We carry a full line of pumps in electric, gas and diesel engine, belt and direct drive configurations as well as a full line of accessories and components throughout the year.  All of our pumps are manufactured and factory tested before shipment here in the USA



Questions?  Click the "Contact Seller" Link Above or Give us a Call Toll Free 8887180706



Description & Specifications:

  • Industrial/Commercial Heavy Duty Immersion Pumps
  • Our line of USA made industrial/commercial immersion pumps are designed for continuous operation and recommended for use in circulation and spraying coolants and cutting oils with large amounts of foreign matter in all types of machines including grinders
  • This series of industrial/commercial immersion pumps is available with 3/8", 1/2", 3/4" and 1" intake ports
  • Features: Cast iron construction with stainless steel semi open propeller, maximum temperature of 180ºF, sealed bearings that operate at 3450 RPM, carbon steel shaft, seal less design for pumping abrasives, pumps liquids down to 2", UL/CSA listed
  • Pump Type: Immersion Sump - Industrial/Commercial
  • Intake Port: 1" NPT Threaded
  • Flow: 3,300 GPH (55 GPM)
  • Motor: 1 Hp
  • Voltage: 230/460V
  • Phase: 3
  • Hertz: 60 Hz
  • Amp Draw: 3.2/1.9
  • PSI: 26
  • Total Head: 60 Ft
  • Operating RPM: 3450 RPM
  • Maximum Temperature: 180ºF
  • Construction: Cast Iron with Stainless Steel Semi Open Impeller
  • Overall Dimensions: 7.7" L x 7.8" W x 20.6" H
  • Weight: 50 Lbs
  • 1 Year Warranty (Includes Parts & Labor)
  • Made in the U.S.A.
