Model: VIRFHI481ATX900DD
Condition: New

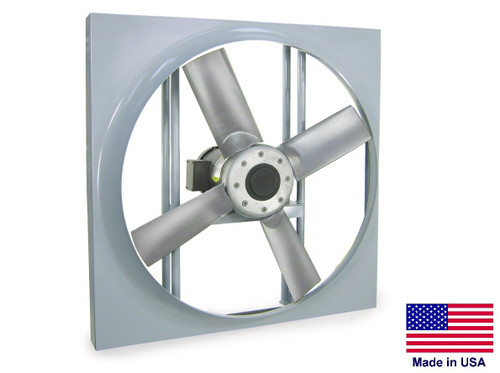

Description: Panel Axial Exhaust Fan - Commercial/Industrial
Payment Options: We Accept all Major Credit Cards, Personal & Business Checks, Bank Wire Transfers and Financing Through PayPal Credit
Shipping: We Ship Worldwide via Air, Ocean and Common Carrier. Contact us for a Freight Quote if Shipment is going Outside of the Lower 48 United States
Discounting: We offer Multiple Item Purchase Discounts - Please Inquire
______________________________________________________________________________________________________
SEE OUR FULL LINE OF PANEL AXIAL EXHAUST FANS IN OUR EBAY STORE. CLICK THE "VISIT STORE" LINK ABOVE
THIS LINE OF INDUSTRIAL PANEL AXIAL EXHAUST FANS IS AVAILABLE WITH THE FOLLOWING CONFIGURATIONS:
Sizes Range: 16" to 60" Motors Horsepower: 1/4 Hp to 10 Hp Voltages: 115/230V, 1 Phase, & 230/460V, 3 Phase CFM Ranges from 3,340 to 54,200 Propeller: 4 Blades on 24" through 36" Models, 6 Blades on 42" through 60" Models This series of panel axial fans is also available in an intake configuration as well as an explosion proof/hazardous location and reversible configurations - please inquire
Description & Specifications:
- Industrial/Commercial Heavy Duty Panel Axial Exhaust Fan
- Our line of Industrial/Commercial Panel Axial Intake and Exhaust Fans are designed for continuous operation
- Recommended for use in manufacturing facilities, assembly plants, automotive industries, barns, poultry houses, greenhouses, garages and similar applications
- Features: Non-overloading air foil spark resistant cast aluminum fan blades, totally enclosed fan cooled motor, heavy duty all welded structural frame, taper lock bushing between propeller and motor shaft for ease of removal, deep spun venturi-type orifice for quiet and efficient operation, coated with a polyester powder coat paint system for long life and superior corrosion resistance, available in exhaust, intake and reversible configurations, please inquire - Made in the USA
- Manufactured with heavy duty steel components and industrial/commercial duty cast aluminium blades
- Fan Type: Panel Axial - Exhaust - Industrial/Commercial
- Recommended Application: Moist or Dry Environments up to 130ºF (for applications that exceed 130ºF, please inquire about our high temperature units)
- Blade Diameter: 48"
- Drive System: Direct Drive
- Horsepower: 7.5 Hp
- Voltage: 230/460V
- Phase: 3
- CFM: 38,700
- Motor Speeds: 1
- Motor Type: TEFC
- Fan Blades: Cast Aluminum - Air Foil - Spark Resistant
- Propeller Blades: 4 Blades on 24" through 36" Models, 6 Blades on 42" through 60" Models (see photos of both configurations in this listing)
- Power Cord: N/A - This is a hard wire fan. We recommend a licensed and insured electrician to run power to this fan
- Optional Item: Model VIRIS - Intake Shutter (when ordered as an intake fan) - Please Inquire
- Optional Item: Model VIRMB - Mounting Box (for in-wall installations) - Please Inquire
- Optional Item: Model VIRRH - Weather/Rain Hood (installs on Mounting Box above) - Please Inquire
- Optional Item: Model VIRES - Exhaust Shutter (when using fan for exhaust applications)
- Optional Item: Model WMS - Wire Mesh Screen (attaches to mounting box and protects fan from birds, rodents and similar) - please inquire
- Please allow 21 to 30 days for delivery - we build this fan to order
- 1 Year Warranty (Includes Parts & Labor)
- Made in the USA
