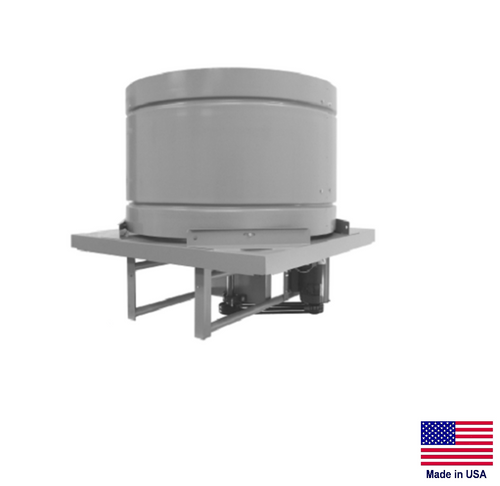

ROOF VENTILATOR EXHAUST FAN - 54" - 230/460V - 3 Ph - 10 Hp - 49,700 CFM - IAS

(No reviews yet) Write a Review
$7,100.17
SKU:
RWAJBI541BTX
ROOF VENTILATOR EXHAUST FAN - 54" - 230/460V - 3 Ph - 10 Hp - 49,700 CFM - IAS
View Details
*WE OFFER FREE SHIPPING TO ANYWHERE IN THE CONTIGUOUS (LOWER 48) UNITED STATES.  ALL OTHER DESTINATIONS, PLEASE CONTACT US FOR A FREIGHT QUOTE*

________________________________________________________________________________________________________________

Model: RWAJBI541BTX

Condition: New

Description: Roof Ventilator Exhaust Fan - Industrial

Payment Options: We Accept all Major Credit Cards, Personal & Business Checks, Bank Wire Transfers and Financing through PayPal Credit

Shipping: Free Shipping within the Lower 48 United States.  We also Ship Worldwide via Air, Ocean and Common Carrier.  Contact us for a Freight Quote

Discounts: We Offer Multiple Item Purchase Discounts - Please Inquire

______________________________________________________________________________________________________



SEE OUR FULL LINE OF FANS, COOLERS, BLOWERS AND ACCESSORIES IN OUR EBAY STORE BY CLICKING THE "VISIT STORE" LINK ABOVE UNDER SELLER INFORMATION



Questions?  Click the "Contact Seller" Link Above (under Seller Information) or Find us on the Web at Streamline Industrial a VirTau Company



THIS LINE OF INDUSTRIAL ROOF VENTILATOR EXHAUST FANS IS AVAILABLE WITH THE FOLLOWING OPTIONAL CONFIGURATIONS:

Sizes Range: 24" to 84" Blade Diameters

Motor Horsepower Range: 1/2 Hp to 25 Hp

Voltage Range: 115/230V, 1 Phase, & 230/460V, 3 Phase

Air Flow Range: 5,480 to 117,000 CFM



This series of roof ventilator exhaust fans is also available in an explosion proof/hazardous location configuration - please inquire



Description & Specifications:

  • Industrial Heavy Duty Roof Ventilator Exhaust Fan
  • Our line of Industrial Roof Ventilator Exhaust Fans are designed for continuous operation
  • Designed for applications including paint booth exhaust, chemical fume exhaust, dust particles and air circulation involving higher static pressures and CFM requirements
  • Recommended for use in manufacturing facilities, assembly plants, automotive industries, barns, poultry houses, greenhouses, garages and similar settings that require the motor and drive components to be located inside the air stream
  • Features: Cast aluminum spark resistant fan blades, totally enclosed fan cooled motor, galvanized wind band provides protection from weather, aluminium damper lids open and close automatically, rain channel directs rain outside of fan and onto roof, welded steel structural frame for added support with less vibration, polyester powder coat for long life and superior corrosion resistance, Made in the USA
  • Manufactured with heavy duty steel components and industrial/commercial duty cast aluminium blades
  • Fan Type: Roof Ventilator - Exhaust - Industrial
  • Recommended Application: Dry Environments up to 110ºF (for applications that exceed 110ºF, please inquire about our high temperature units)
  • Blade Diameter: 54"
  • Drive System: Belt Drive
  • Horsepower: 10 Hp
  • Voltage: 230/460V
  • Phase: 3
  • CFM: 49,700
  • Number of Blades: 6
  • Motor Speeds: 1
  • Motor Type: TEFC
  • Damper: Aluminium Damper lids Open and Close Automatically
  • Fan Blades: Cast Aluminum - Spark Resistant
  • Power Cord: N/A - This is a hard wire fan.  We recommend a licensed and insured electrician to run power to this fan
  • 1 Year Warranty (Includes Parts & Labor)
  • Made in the USA
