Model: VIR430A95
Condition: New

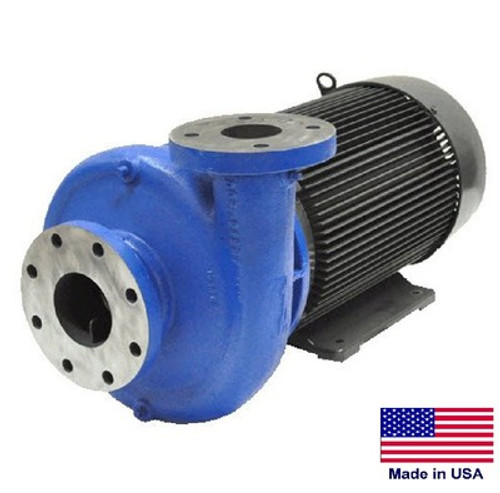

Description: Straight Centrifugal Pump - Commercial/Industrial
Features: 102,000 GPH (1700 GPM) - 30 Hp - 208-230/460V - 3 Phase - 80/36 Amps - 53 PSI - 6" Eight-Bolt Flanged Suction Port - 4" Eight-Bolt Flanged Discharge Port - Flooded Suction Priming - Silicon Bronze Precision Cast Dynamically Balanced Impeller - Includes Seal Flush/Air Relief Valve - Solids Handling up to 1/4" - Made in the USA
Payment Options: We Accept all Major Credit Cards, Personal & Business Checks, Bank Wire Transfers and Financing through and Capital Finance through
Shipping: We Ship Worldwide via Air, Ocean and Common Carrier. Contact us for a Freight Quote Toll Free
Discounts: We Offer Multiple Item Purchase Discounts - Please Inquire Toll Free at
______________________________________________________________________________________________________
SEE OUR FULL LINE OF CENTRIFUGAL PUMPS BY FOLLOWING THIS LINK: OUR CENTRIFUGAL PUMP LINE
This Series of Commercial Straight Centrifugal Pumps are Available in the Following Configurations:
Flows: 10,800 GPH (180 GPM) to 102,000 GPH (1700 GPM)
PSI Range: 40 to 87
Motor Sizes: 5 Hp to 30 Hp
Voltage/Phase: 208-230/460V, 3 Phase (only)
Suction Ports: 2" to 6" Discharge Ports: 1.5" to 4"
Questions? Ask our Experts Toll Free at
Description & Specifications:
- Industrial/Commercial Heavy Duty Straight Centrifugal Pump
- Our extensive line of USA made industrial/commercial centrifugal and straight centrifugal pumps are designed for continuous operation and are recommended for use in water circulation, boosting, wash-down, liquid transfer, de-watering and similar applications (when configured as explosion proof/hazardous location, this line of pump is designed for use in pumping flammable materials)
- Features: heavy duty cast iron construction, flooded suction priming, TEFC industrial/commercial duty motors, dynamically balanced cast bronze impeller minimizes vibration and maximizes motor bearing life, pull-from-rear design provides easy servicing without disturbing piping, 1/4" NPT gauge taps on suction and discharge ports for system monitoring, includes seal flush/air relief valve, front drain plugs
- Pump Type: Straight Centrifugal - Industrial/Commercial
- Motor: 30 Hp TEFC
- Voltage: 208-230/460V
- Phase: 3
- Hertz: 60
- Motor Type: TEFC
- Amp Draw @ 208/230V: 80
- Amp Draw @ 460V: 36
- Suction Port: 6" Eight-Bolt Flanged - 125 Lb
- Discharge Port: 4" Eight-Bolt Flanged - 125 Lb
- Flow: 102,000 GPH (1700 GPM)
- PSI: 53
- Maximum Total Head: 122 Ft
- Construction: Cast Iron
- Impeller: Cast Bronze - Silicon Bronze Precision Cast Dynamically Balanced
- Seal: Viton Silicon Carbide/Carbon Mechanical
- Case Wear Ring: Bronze
- Motor Shaft Sleeve: Bronze
- Solids Handling Capacity: 1/4"
- Priming: Flooded Suction and Positive Suction Pressure
- Maximum Temperature: 200ºF
- Maximum Working Pressure: 175 PSI
- Includes Seal Flush/Air Relief Valve, Front Drain Plugs and 1/4" NPT Gauge Taps on Suction and Discharge Ports for System Monitoring
- Power Cord/Plug: N/A. This is a hard-wire pump. We recommend a licensed and insured electrician to run power to this pump
- Note: we carry a full line of accessories including hoses, strainers, seal kits, wheel and dolly kits and more. Please inquire Toll Free at
- Overall Dimensions: 31.2" L x 26" W x 18.2" H
- Ship Weight: 540 Lbs
- 1 Year Warranty - Includes Parts & Labor
- Made in the USA
