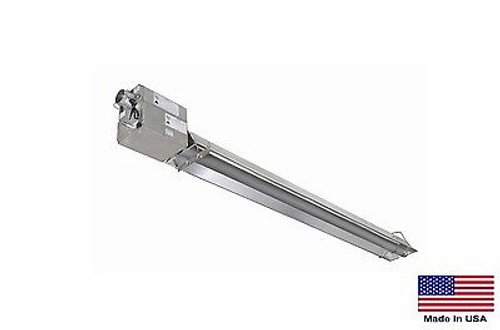

STRAIGHT TUBE HEATER Coml/Industrial - Infrared - NG Fired - 50 Ft - 200,000 BTU

(No reviews yet) Write a Review
$3,109.10
SKU:
VIRWBB59958



WE OFFER FREE SHIPPING TO ANYWHERE IN THE CONTIGUOUS (LOWER 48) UNITED STATES.  ALL OTHER DESTINATIONS, PLEASE CONTACT US FOR A FREIGHT QUOTE



Model Number:         VIRWBB59958

Condition:                 New

Description:               Infrared Straight Tube Heater – Commercial/Industrial

Features:                 200,000 BTU – Natural Gas Fired – 50 Ft Long – Positive Pressure – Direct Spark Ignition – Gas Shutoff Safety Control – Aluminized Steel Combustion Chamber – Direct or Indirect Venting – Versatile Mounting, Horizontal or Angle Mount up to 45º – CSA Certified – UL Listed – Made in the USA

Payment Options:    We Accept all Major Credit Cards, Personal and Business Checks and Bank Wire Transfers

Financing:                 We Partner with for Residential Financing and Direct Capital Finance for Commercial/Business Financing

Shipping:                  Shipping is Free to Anywhere in the Lower 48 United States. We Ship Worldwide via Air, Ocean and Common Carrier.  Contact us for a Freight Quote if Shipment is going Outside of the Lower 48 United States Toll Free at Click the "Ask a Question" Link Below

Discounting:             We offer Multiple Item Purchase Discounts – Please Inquire Toll Free at Click the "Ask a Question" Link Below





SEE OUR FULL LINE OF HEATERS & ACCESSORIES BY FOLLOWING THIS LINK: OUR HEATERS & ACCESSORIES LINE



This Series of Heaters is Available in the Following Alternate Ranges and Configurations:

Burner Types:           Natural Gas (NG) and Propane (LP)

BTU Ranges:            50,000 to 200,000

Lengths:                    10 Ft to 70 Ft



Questions?  Ask our Experts Toll Free at Click the "Ask a Question" Link Below



Description & Specifications:

  • Industrial/Commercial Positive Pressure Straight Tube Heater
  • Our heavy duty USA made line of straight and u-tube heaters provide efficient, uniform radiant heat distribution.  Designed for use in commercial and industrial settings. Recommended for use in manufacturing and assembly facilities, warehouses, loading docks, farm buildings, maintenance shops, aircraft hangars, fire stations, machine shops and more
  • This series heater is available in Natural Gas or Propane models.  BTU ratings in this series range from 40,000 BTU to 200,000 BTU
  • Features: Corrosion resistant aluminized steel tube, aluminum reflectors  designed to maximize radiant output, automatic gas shutoff safety control valve
  • Heater Type: Infrared – Straight Tube – Positive Pressure - Industrial/Commercial
  • Fuel Requirement: Natural Gas (NG)
  • BTU Rating: 200,000
  • Tube Length: 50 Ft
  • Voltage (Fan): 115V, 60 Hz, 1 Phase, 2.6 Amps
  • Construction: Aluminized Steel with Aluminum Reflectors
  • Combustion Chamber: 4” OD Heat Treated Aluminized Steel
  • Tube Diameter: 4”
  • Flue Connection: 4” Round
  • Fresh Air Connection: 6” Round
  • Clearance to Combustibles - Sides: 84"
  • Clearance to Combustibles - Above: 6"
  • Clearance to Combustibles - Below: 106"
  • Clearance to Combustibles - Ends: 48”
  • Burner Pressure Water Column: 3.5"
  • Gas Inlet Pressure Maximum Water Column: 14”
  • Gas Inlet Pressure Minimum Water Column: 5”
  • Ignition Type: Direct Spark
  • Gas Connection Type: 1/2" NPT Male
  • Thermostat: Not Included – see Optional Items below
  • Safety Controls: 100% Gas Shut-Off
  • Mounting: Horizontal or Angle Mount up to 45º
  • Venting: Direct or Indirect.  75 Ft Sidewall Venting and 50 Ft Outside Air Capability
  • Ships Assembled
  • Approvals & Certifications: CSA Design Certified – UL Listed – ANSI Z83.20 Compliant
  • Note: Straight and U-Tube Heaters are available in “Negative Pressure” (Vacuum)” and “Positive Pressure (Forced)” configurations.  Straight and U-Tube Heaters use fans to circulate the heat through the tube.  On negative pressure heaters, the fan is mounted at the end of the tube and pulls the heat through the tube.  Negative pressure heaters are designed for use in dry environments.  On positive pressure heaters, the fan is mounted inside the control box and is sealed from the elements.  Positive pressure heaters are designed for use in moisture rich environments such as car washes, greenhouses and similar applications
  • Installation Recommendation: we recommend a licensed and insured HVAC professional for installation of this heater, installation must comply with National Fuel Gas Code ANSI Z223.I / NFPA 54 / CGA B149 Installation Codes
  • Optional Item: VIRWBB61843 – Mounting Kit – Includes 25 Ft of Chain and 8 “S” Hooks
  • Optional Item: VIRWBB61832 – Line Voltage Thermostat – 115V - Dial Type - Can be used to control up to 7 heaters at once
  • Optional Item: VIRWBB61840 – Gas Connection Line – Flexible – ½” x 24” Long – Stainless Steel Construction – UL Listed, CSA Certified
  • Optional Item: VIR28795 – Vertical Venting Kit – 4” – for direct venting of combustion by-products.  Includes three 24” pipe lengths, one 12” storm collar, roof cap, 90º elbow and draft hood connector.  Additional lengths of pipe available.  Please inquire Toll Free at Click the "Ask a Question" Link Below
  • Optional Item: VIR28794 – Horizontal Venting Kit – 4” – for direct venting of combustion by-products.  Includes three 24” pipe lengths, one horizontal termination cap, one wall thimble, two 45º elbows and draft hood connector.  Additional lengths of pipe available.  Please inquire Toll Free at Click the "Ask a Question" Link Below
  • NOTE: PLEASE ALLOW 14 TO 18 DAYS FOR DELIVERY AS WE BUILD THIS UNIT TO ORDER
  • Overall Dimensions: 624” L x 13" W x 6.25" H
  • Ship Weight: 197 Lbs
  • 5 Year Warranty on Burner, 1 Year Warranty on Remainder of Unit (Includes Parts & Labor)
  • Made in the USA
